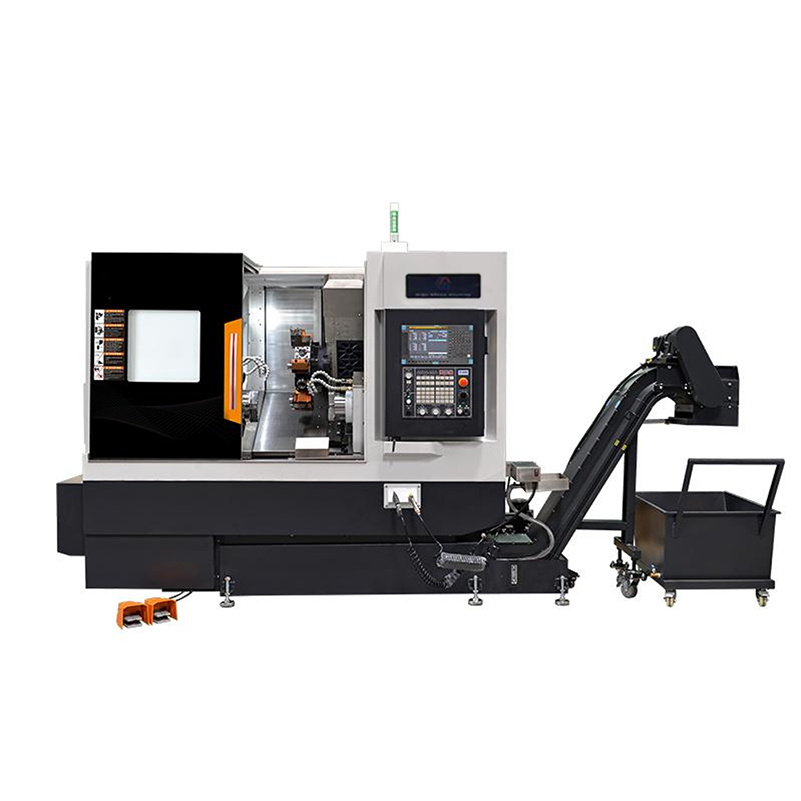

HMS-320MY
TAIZHENG
TZ-HMS-320MY
规格参数Specifications
加工能力Processing Capabilities | 单位unit | HMS-320MY | ||
加工能力 Processing Capabilities | 最大床身旋转直径 Maximum bed rotation diameter | mm | Φ550 | |
最大床鞍旋转直径 Maximum saddle rotation diameter | mm | Φ260 | ||
最大加工直径 Maximum processing diameter | mm | Φ280 | ||
最大加工长度 Maximum processing length | mm | 390 | ||
最大棒材通孔直径 | mm | 标准STD-Φ46 选项OPT-Φ52/65 | ||
床身角度 Bed angle | 床身角度Bed angle | 度°Degree° | 30 | |
主轴Spindle | 主轴鼻端Spindle nose | ASA | 标准STD-A2-5 选项OPT-A2-6 | |
主轴通孔直径Spindle through hole diameter | mm | 标准STD-Φ52 选项OPT-Φ65/79 | ||
主轴最高转速Maximum spindle speed | rpm | 标准STD-6000 选项OPT-4200 | ||
卡盘Chuck | " | 标准STD-6" 选项OPT-8" | ||
轴向进给 Axial feed | 轴向行程 Axial travel | X-轴axis | mm | 250 |
Z-轴axis | mm | 450 | ||
Y-轴axis | mm | 70(±35) | ||
快速移动 Fast Movement | X-轴axis | m | 24 | |
Z-轴axis | m | 24 | ||
Y-轴axis | m | 15 | ||
滑轨型式Slide rail type | / | 线轨Linear guide | ||
导轨宽度Rail width | mm | 35 | ||
精度Accuracy | X/Y/Z轴定位精度 Axis positioning accuracy | mm | ±0.005 | |
X/Y/Z轴重复定位精度 Axis repeatability | mm | ±0.003 | ||
主轴跳动 Spindle runout | mm | ≤0.003 | ||
刀塔Turret | 刀位数Number of tool positions | pcs | 15 | |
外径刀座规格 Outer diameter tool holder specifications | mm | 20X20 | ||
内径刀座规格 Inner diameter tool holder specifications | mm | Φ25 | ||
接口规格 Interface specifications | / | BMT40 | ||
动力刀具Power Tools | 动力刀具最高转速 Maximum speed of power tool | rpm | 4000 | |
尾座Tailstock | 轨道形式Track form | / | 硬轨Hard rail | |
驱动方式Drive mode | / | 标准STD-手动Manual 选项OPT-自动AUTO | ||
尾座轨道最大行程 Tailstock rail maximum travel | mm | 270 | ||
尾座套筒锥度 Tailstock quill taper | mm | 4# | ||
尾座套筒直径 Tailstock sleeve diameter | mm | Ф60 | ||
尾座套筒行程 Tailstock quill stroke | mm | 80 | ||
电机 motor | 主轴电机 功率（额定/最大） Spindle motor power (rated/maximum) | Kw | 标准STD-7.5/9.0 选项OPT-11.0/15.0 | |
主轴电机 扭矩（额定/最大） Spindle motor torque (rated/maximum) | N.M | 标准STD-95.5/115 选项OPT-105/191 | ||
伺服电机 Servo Motor | X-轴axis | Kw/N.M | 1.2/7.0 | |
Z-轴axis | Kw/N.M | 1.2/7.0 | ||
M-轴axis | Kw/N.M | 1.2/7.0 | ||
Y-轴axis | Kw/N.M | 2.7/11.0 | ||
机床尺寸 Machine size | 机床尺寸 Machine size | 长度length | mm | 2470（+排屑机Chip conveyor-3670） |
宽度width | mm | 1780 | ||
高度high | mm | 1970 | ||
机床重量（约） | Machine weight (approx.) | kg | 3700 | |
备注：本公司保留变更机床技术参数的权利，变更时恕不另行通知！ Note: Our company reserves the right to change the technical parameters of the machine tool without prior notice! | ||||
主要配置表Main configuration table
名称name | quantityquantity | 品牌产地Brand Origin | |
1 | 床身铸铁Bed cast iron | 1set套 | 中国China |
2 | 控制系统Control System | 1set套 | FANUC 0i-TF Plus(3B) |
3 | X/Y/Z/M伺服电机Servo Motor | 1set套 | 日本Japan FANUC |
4 | 主轴电机Spindle motor | 1set套 | 日本Japan FANUC |
5 | X/Z轴滚珠丝杠 X /ZAxis ball screw Axis ball screw | 1set套 | 日本Japan THK |
6 | X/Z轴丝杠轴承 X/Z axis screw bearings | 1set套 | 日本Japan NSK |
7 | X/Z轴直线导轨 X/Z axis linear guide | 1set套 | 日本Japan THK |
8 | 卡盘Chuck | 1set套 | 台湾Taiwan Jiahe 佳贺 |
9 | 刀塔Turret | 1set台 | 台湾Taiwan jinggangxing 金刚心 jin'gang'x |
10 | 外圆刀座 External tool holder | 3set个 | 中国China |
11 | 镗孔刀座Boring tool holder | 3set个 | 中国China |
12 | 主轴单元Spindle unit | 1set套 | 台湾Taiwan taida / jianchun Taiwan National Taiwan University |
13 | 冷却系统Cooling system | 1set套 | 中国China |
14 | 液压系统Hydraulic system | 1set套 | 台湾 Taiwan |
15 | 自动润滑系统Automatic lubrication system | 1set套 | 日本Japan 河谷River Valley |
16 | 电器元件 Electrical components | 1set套 | 法国 施耐德Schneider, France |
17 | 全封闭钣金Fully enclosed sheet metal | 1set套 | 中国China |
18 | 防护罩Protective cover | 1set套 | 中国China |
19 | 三色指示灯Three-color indicator light | 1set个 | 中国China |
20 | 节能工作灯Energy-saving work lights | 1set个 | 中国China |
21 | 脚踏开关Foot switch | 1set个 | 中国China |
22 | 程式手册，操作说明书 Programming manual, operating instructions | 1set套 | 日本Japan FANUC |
23 | 维护工具Maintenance tools | 1set套 | 中国China |
24 | 尾座活动顶针 Tailstock movable ejector | 1set套 | 中国China |
注：因零配件供货不及时等原因，可能导致某些零配件与配置单不符，
我们将采用同档次的其他品牌配件，具体以实际生产的机床为准。
Note: Due to reasons such as untimely supply of spare parts, some spare parts may not match the configuration list. We will use other brand parts of the same grade, which shall be subject to the actual production of the machine tool.
TZ After-sales Service Terms
Online Technical Support Services
1. Establish an exclusive after-sales technical team to provide 24/7 online response services (lifetime technical support).
2. Address product inquiries, troubleshooting, and technical guidance through multiple channels (phone, email, instant messaging) to ensure efficient response and closed-loop resolution.
On-site Installation & Commissioning Services
1. Within 2 months from the date of machine delivery, one free on-site installation and commissioning service will be provided (limited to the first installation).
2. The service includes equipment commissioning, functional demonstrations, and basic operation training to ensure normal use by the customer.
3. After 2 months from the delivery date, if on-site services are required, our company will provide a separate quotation and charge accordingly.
Equipment Warranty & Replacement Policy
1、The warranty period for the entire machine and accessories is 12 months. For accessory failures due to the product's own quality issues (not caused by human damage or force majeure), customers can send back the faulty accessories free of charge. Taizheng will send out the replacements within 7-15 working days after receipt (7 working days for standard parts, and non-standard parts will be arranged according to the customization time)
2.For accessory replacements outside the warranty period, fees will be charged at cost price, and lifetime technical support will be provided.
Local Agent Services
1 、 Priority coordination with authorized local agents (if available) for on-site maintenance and part replacements to reduce response time.
2、Service scope and fees subject to local agency agreements.
3、Current agent countries: Russia, Thailand, Vietnam, South Korea.
Pre-delivery Inspection Services
1 、 Supports pre-shipment factory acceptance testing, including functional demonstrations, performance verification, and cosmetic inspection to ensure contractual compliance.
2 、 Customer bears all travel expenses during inspection; we provide necessary assistance. Additional Notes Disclaimer: Failures caused by human damage, unauthorized modifications, non-compliance with operating specifications, or force majeure (such as natural disasters) are not covered by the free service range.
