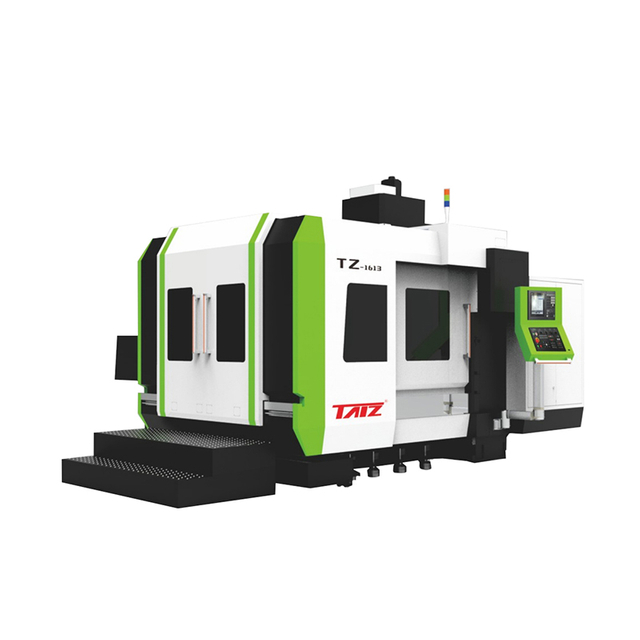

A Gantry Machining Center is a CNC machine specifically designed for large, heavy, and long workpieces that demand exceptional structural stability and consistent accuracy. Featuring a dual-column gantry structure with a crossbeam, this machine architecture is engineered to minimize deformation, vibration, and thermal distortion during large-scale machining operations.
Unlike conventional vertical or horizontal machining centers, gantry machines are built to handle large-format components, high table loads, and extended machining cycles while maintaining stable precision. They are widely used in mold manufacturing, heavy machinery, energy equipment, and large structural part production.
When machining large or heavy components, machine structure becomes the primary factor influencing accuracy. The gantry design distributes cutting forces symmetrically across two rigid columns, providing superior resistance to bending and torsion.
Key structural advantages include:
Balanced load distribution across the machine frame
Reduced deflection during heavy cutting
Improved straightness and flatness over long travel distances
Enhanced thermal stability due to symmetrical construction
For large parts, structural stability is not optional—it is essential.
A gantry machining center is engineered with a reinforced structural design to support large-format, heavy-duty machining. Below is an overview of the core components and their functions.
| Component | Description & Function |
|---|---|
| Gantry Columns (Dual Columns) | Provide symmetrical structural support on both sides of the machine, ensuring rigidity and minimizing deformation during heavy cutting operations. |
| Crossbeam (Bridge) | Connects the two columns and supports the spindle head, maintaining stability and straightness over long travel distances. |
| Spindle System | Responsible for cutting operations; designed for high torque and stable performance in long machining cycles. |
| Worktable | Large-capacity table engineered to support heavy and oversized workpieces with high load-bearing capability. |
| Linear Guideways | Enable precise and smooth movement of machine axes while maintaining accuracy under heavy loads. |
| Ball Screws / Drive System | Convert rotary motion into linear motion with high positioning accuracy and repeatability. |
| CNC Control System | Controls multi-axis motion, machining paths, feed rates, and process coordination for large-scale machining tasks. |
| Cooling & Lubrication System | Regulates temperature and reduces wear during extended machining operations. |
| Chip Removal System | Efficiently removes large volumes of chips generated during heavy cutting to maintain machining stability. |
| Machine Base & Bed | Provides a stable foundation to absorb vibration and support the entire gantry structure. |
Each component is designed to work together to ensure long-term stability, accuracy, and reliability when machining large and heavy parts.
A gantry machining center operates by combining a rigid dual-column structure with precise multi-axis motion to machine oversized workpieces efficiently and accurately.
During operation, the workpiece is securely fixed on the large worktable. The spindle head moves along the crossbeam and vertical axis, while the table or gantry structure provides controlled linear motion along the remaining axes. This configuration allows the cutting tool to cover a wide machining area without repositioning the workpiece.
Key working principles include:
Stable Support for Large Workpieces
The gantry structure distributes cutting forces evenly, reducing vibration and deformation caused by workpiece weight and cutting loads.
Consistent Accuracy Over Long Travels
Precision guideways and drive systems ensure smooth motion and accurate positioning across extended machining ranges.
Efficient Heavy-Duty Cutting
High-rigidity components and powerful spindle systems enable aggressive material removal while maintaining dimensional accuracy.
Long-Cycle Machining Capability
The machine is designed to operate continuously for extended periods, maintaining stability and surface quality throughout long machining cycles.
This working principle makes gantry machining centers especially suitable for large molds, structural components, heavy machinery parts, and energy equipment, where size, weight, and precision must be controlled simultaneously.
Large-scale machining introduces challenges that standard CNC machines are not designed to overcome:
Workpiece self-weight deformation during machining
Accumulated errors from multiple repositioning and setups
Heat buildup during long machining cycles
Loss of flatness and straightness over extended travel
Gantry machining centers address these challenges by providing a rigid, stable platform that supports the entire machining process from roughing to finishing.
A gantry machining center is not simply a “larger VMC.” Its design philosophy is fundamentally different:
Extra-large machining envelope for oversized components
High-load worktables designed for heavy workpieces
Rigid crossbeam and column structures for consistent accuracy
Optimized for long-duration machining tasks
This makes gantry machines the preferred solution when part size, weight, or structural integrity exceed the limits of conventional CNC machines.
Gantry machining centers are commonly used in applications where size, rigidity, and precision must coexist:
Large mold and die manufacturing – mold bases, automotive and appliance molds
Heavy machinery components – frames, beds, and structural parts
Energy and power equipment – wind power components, turbine housings
Shipbuilding and transportation – large structural sections and panels
In these applications, maintaining dimensional accuracy across large surfaces is critical.
Gantry machining centers are designed to machine large and heavy materials efficiently and reliably, including:
Carbon steel and alloy steel
Cast iron components
Large aluminum alloy structures
Welded or stress-relieved fabricated parts
Their rigid construction ensures stable cutting even under demanding material conditions.
When machining large or heavy workpieces, the choice between a gantry machining center and a large vertical machining center (VMC) is primarily determined by machine structure, not spindle power or travel size alone.
The following comparison highlights the structural differences that directly impact machining stability, accuracy, and long-term performance.
| Aspect | Gantry Machining Center | Large Vertical Machining Center |
|---|---|---|
| Machine Structure | Dual-column gantry structure with crossbeam support, providing symmetrical load distribution. | Single-column structure supporting the spindle head from one side. |
| Rigidity & Stability | Extremely high rigidity due to balanced structural support on both sides. | Limited rigidity for very large or heavy parts due to asymmetric loading. |
| Load Distribution | Cutting forces and workpiece weight are evenly distributed across the machine frame. | Cutting forces are concentrated on one column and machine base. |
| Suitability for Heavy Workpieces | Designed specifically for very heavy and oversized components. | Suitable for large parts within a limited weight range. |
| Long-Travel Accuracy | Maintains straightness and flatness over long travel distances. | Accuracy can degrade as travel length and part size increase. |
| Thermal Stability | Symmetrical structure helps reduce thermal deformation during long machining cycles. | More susceptible to thermal drift due to uneven structural expansion. |
| Long-Cycle Machining | Ideal for extended machining cycles lasting many hours or days. | Better suited for shorter machining cycles. |
| Overall Precision for Large Parts | High and consistent precision across large work envelopes. | Precision decreases as part size and machining duration increase. |
A large vertical machining center can be an effective solution when:
The workpiece size is large but not extremely heavy
Machining cycles are relatively short
Overall flatness and long-distance straightness are not critical
Cost and footprint are key considerations
In these cases, a large VMC offers a practical balance between capacity and investment.
A gantry machining center becomes the preferred option when:
Workpieces are oversized or very heavy
Structural deformation must be minimized
Machining accuracy must be maintained over long distances
Long, continuous machining cycles are required
Overall part flatness and consistency are critical
For these applications, machine structure—not just size—determines success.
A common misconception is that a larger VMC can simply replace a gantry machine. In reality, once part size, weight, and machining duration exceed certain limits, structural symmetry and load distribution become decisive factors. Gantry machining centers are engineered specifically to address these challenges.
Large parts often require hours or even days of continuous machining. In such cases, accuracy depends not only on positioning precision, but also on long-term stability.
Gantry machining centers excel in:
Maintaining accuracy over extended machining cycles
Minimizing thermal drift through symmetrical structure
Delivering consistent surface quality across large areas
This makes them ideal for applications where rework or scrap due to distortion is unacceptable.
A gantry machining center is the right solution when:
Part dimensions approach or exceed standard CNC travel limits
Workpiece weight challenges conventional machine tables
Overall flatness and straightness are critical
Multiple setups introduce unacceptable error risks
Long, continuous machining cycles are required
In these scenarios, a gantry machine is not an upgrade—it is a necessity.
Gantry machines are not only for rough machining
Modern gantry centers can achieve high precision and fine surface finishes.
Gantry machines are not just oversized VMCs
Their structural design is fundamentally different and purpose-built.
Large parts do not mean low accuracy
With proper structure and control, gantry machines deliver excellent precision.
Rigid dual-column gantry structure for maximum stability
Designed for large-format and heavy-duty machining
High accuracy maintained over long machining cycles
Suitable for both roughing and finishing operations
Engineered for demanding industrial applications
Our gantry machining centers provide reliable performance for manufacturers working with large, heavy, or high-value components.
It is used for machining large and heavy parts that require high stability and precision.
Gantry machines offer superior rigidity, load capacity, and accuracy for oversized components.
Yes. The gantry structure minimizes deformation and maintains accuracy over large work areas.
Mold manufacturing, heavy machinery, energy, transportation, and shipbuilding industries.
A gantry machine is a large-format machine built around a bridge-like frame (“gantry”) that spans the working area. In CNC machining, this structure is designed to provide high rigidity and stability for machining large, heavy, or long workpieces, where structural support and accuracy over long travel distances are critical.
A gantry milling machine is a CNC milling system using a gantry (bridge) structure to support the cutting head and maintain stiffness while machining large workpieces. It is commonly used for heavy-duty milling, surface machining, drilling, and finishing on oversized parts.
On a CNC machine, the gantry refers to the spanning frame/bridge that moves (or supports the moving spindle head) across the table/work zone. It is designed to carry the cutting head while keeping the structure stable, especially under heavy cutting loads or large work envelopes.
A gantry CNC (or gantry CNC mill) is a CNC machine where a gantry frame spans the work area and enables machining of large parts—often with the workpiece remaining stationary while the gantry/spindle head moves. This design is frequently chosen for large-format and heavy-load machining tasks.
The main purpose of a gantry structure is to bridge a large working area while providing rigid, stable support for the cutting head. In machining applications, that means better stability, reduced vibration/deflection, and improved consistency when machining large surfaces or heavy components.
Functionally, the gantry:
Supports and guides the spindle head across a wide work area
Helps maintain structural symmetry and rigidity
Enables machining on large parts without compromising stability
Improves accuracy across long travel distances by resisting deformation under load
This is why gantry designs are common in large mold machining, heavy equipment components, and large structural parts.
A gantry machining center works by fixing the workpiece on a large table while the spindle head moves along the gantry structure (and other machine axes). The gantry frame spans the machining zone, allowing the machine to cover a wide area with stable support—especially beneficial for long-cycle machining and large surface finishing.
Common disadvantages include:
Higher investment cost versus standard VMCs due to larger structure and components
Larger footprint and more demanding installation requirements
Potentially higher operating and maintenance complexity (more moving mass, larger systems)
Not always cost-effective for small parts or low-volume work
In short: gantry machines excel when part size/weight/accuracy needs justify the structure.
“Gantry” refers to a spanning framework—a bridge-like structure that crosses an area. In machines, it describes the frame that “bridges” the work zone and supports motion across it.
“Gantry” can describe several machine architectures. In machining, common categories include:
Moving-gantry designs: the gantry travels over a stationary table/workpiece
Fixed-bridge / moving-table designs (often called bridge mills): the bridge is fixed while the table moves beneath it
Large-format gantry machining centers specialized for trimming, milling, drilling, and multi-process operations on oversized parts (often seen in composites/large structures)
Hourly CNC milling cost varies by machine class, overhead, and region. Many industry references cite broad ranges such as $40–$80/hr for 3-axis, $60–$100/hr for 4-axis, and $100–$200/hr for 5-axis; other sources provide similar “entry/mid/high-end” tiers up to $100–$200/hr for higher-end machining.
Shop rates are influenced by: machine type, programming/setup time, tolerance, material, inspection, and utilization. A practical approach is to present “typical ranges” by machine class (3/4/5-axis) and clarify that setup + QA can be as important as pure spindle time.
A common pricing method is:
Price = (Setup time × setup rate) + (Cycle time × machine rate) + tooling + material + inspection + overhead + margin.
Many shops stress that quoting must include overhead and wear/maintenance, not just “machine running time.”
Typical CNC machine lifespan is often quoted around 10–20 years, with many sources noting 15–20 years for well-maintained equipment and potentially longer with good maintenance and reasonable duty cycles.
Large-scale machining demands the right combination of structure, stability, and process planning. Our engineering team can help evaluate your part size, material, and accuracy requirements to determine whether a gantry machining center is the optimal solution for your application.
Contact us today for professional consultation and customized gantry machining solutions.
