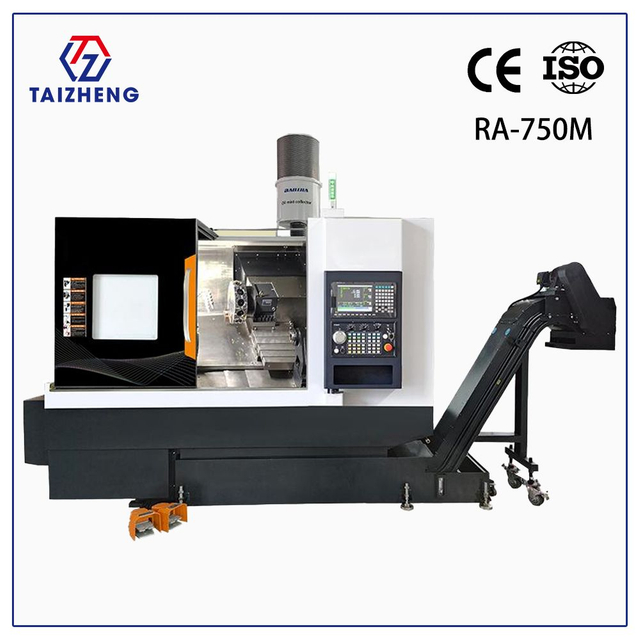

A Turn-Mill Lathe Machine (also known as a Mill-Turn CNC machine) combines turning and milling operations into a single machining platform, allowing complex parts to be completed in one setup. This integrated approach significantly reduces part handling, setup changes, and cumulative machining errors.
Turn-mill machining is designed for manufacturers who need to improve process efficiency, part accuracy, and production consistency—especially for components that traditionally require multiple machines and setups.
To fully understand the value of turn-mill machining, it is important to first clarify the difference between turning, milling, and why combining these processes into a single machine creates significant manufacturing advantages.
Turning is a machining process where the workpiece rotates while a stationary cutting tool removes material. It is most commonly used to produce cylindrical, conical, and rotationally symmetric parts.
Typical turning operations include:
External and internal turning
Facing
Grooving
Threading
Turning is highly efficient for round features and is the foundation of most shaft- and disc-type components.
Milling is a machining process where the cutting tool rotates and moves relative to a stationary or partially indexed workpiece. Milling is ideal for creating non-rotational features.
Typical milling operations include:
Flats and slots
Keyways
Side holes
Complex prismatic features
Milling adds geometric flexibility that turning alone cannot achieve.
In conventional manufacturing, turning and milling are often performed on different machines:
Turning on a CNC lathe
Milling on a machining center
This separation requires:
Multiple setups
Part transfer between machines
Re-clamping and re-alignment
Additional fixtures and inspections
Each step increases time, cost, and the risk of accumulated dimensional error.
Turn-mill machining integrates rotational cutting (turning) and rotary tool machining (milling) in one CNC system. Instead of moving a part between a lathe and a milling machine, a turn-mill lathe performs multiple operations sequentially while the part remains clamped once.
A turn-mill lathe combines:
A turning spindle for rotational machining
Driven tools or milling spindles for prismatic features
Multi-axis motion to access features from different orientations
This integration transforms the machining process from a machine-based workflow into a process-optimized workflow.
By completing all operations in one setup, turn-mill machining:
Eliminates re-clamping errors
Preserves the accuracy chain
Improves concentricity and positional accuracy
Combining turning and milling:
Reduces the number of machines required
Minimizes fixtures and part handling
Simplifies production planning
Because all features are machined in the same coordinate system:
Coaxial features remain aligned
Hole positions relative to turned surfaces are more accurate
Batch-to-batch consistency is improved
Turn-mill machining reduces:
Setup time
Work-in-process inventory
Scheduling delays between machines
This results in more stable and predictable manufacturing cycles.
Turn-mill machining delivers the greatest benefit when:
Parts require both rotational and prismatic features
Tight concentricity or positional tolerances are required
Multiple setups are causing efficiency or quality issues
Production demands higher consistency and lower handling risk
In these scenarios, turn-mill machining is not just a machine upgrade—it is a process optimization strategy.
In conventional manufacturing, every additional setup introduces:
Re-clamping error
Alignment variation
Accumulated tolerance stack-up
Turn-mill machining preserves the accuracy chain by keeping the workpiece in the same coordinate system throughout the process. This is especially critical for:
Coaxial features
Position-sensitive holes and slots
Parts requiring tight concentricity
One-setup machining does not just improve speed—it fundamentally improves dimensional integrity.
A turn-mill lathe operates by combining multiple machining principles:
The main spindle rotates the workpiece for turning operations
Driven tools or milling spindles perform milling, drilling, and tapping
Additional axes (such as Y-axis or secondary spindles) enable off-center and multi-side machining
This coordinated motion allows complex geometries to be completed without removing the part from the machine.
Turn-mill machining is best defined by part characteristics, not by industry labels.
Typical examples include:
Shaft-type parts with flats, keyways, or cross-holes
Disc-shaped components with side features
Parts requiring both rotational symmetry and prismatic features
Components with high concentricity and positional accuracy requirements
For these parts, turn-mill machining often delivers the highest overall efficiency.
CNC lathe → unload
Transfer to milling machine
Re-clamp and re-align
Additional inspection and handling
Single setup
Turning, milling, drilling, tapping completed in one cycle
Reduced fixtures and part handling
The result is fewer work-in-process parts, more predictable cycle times, and improved quality consistency.
Turn-mill machines are especially valuable for maintaining:
Coaxial accuracy
Positional repeatability
Uniform surface quality across features
By eliminating intermediate setups, manufacturers reduce the risk of misalignment and ensure stable results across production batches.
Turn-mill machines occupy a distinct position in CNC machining:
CNC Lathe: Optimized for turning-only operations
Five-Axis Machining Center: Optimized for complex free-form surfaces
Turn-Mill Lathe: Optimized for process integration of rotational and prismatic features
Turn-mill machining is not a replacement for five-axis machining, nor is it simply an upgraded lathe. It is a solution for workflow efficiency and precision continuity.
Choosing the right CNC solution depends on part geometry, process flow, and accuracy requirements—not just machine size or axis count. The table below highlights the fundamental differences between CNC lathes, turn-mill machines, and five-axis machining centers.
| Comparison Factor | CNC Lathe | Turn-Mill Lathe Machine | Five-Axis Machining Center |
|---|---|---|---|
| Primary Function | Turning of rotational parts | Integrated turning and milling | Complex multi-surface milling |
| Machining Method | Workpiece rotates, tool is stationary | Workpiece rotation + rotating cutting tools | Rotating tool with multi-axis movement |
| Process Integration | Turning only | Turning + milling in one setup | Milling only (no turning) |
| Typical Setup Count | Multiple if milling is required | Single setup for complete parts | Single setup for complex surfaces |
| Accuracy Chain Continuity | Interrupted if parts are re-clamped | Preserved through one-setup machining | Preserved for milled features |
| Best for Part Geometry | Shafts, cylinders, discs | Shafts or discs with prismatic features | Free-form or complex 3D surfaces |
| Coaxial / Positional Accuracy | High for turned features only | Very high across turned & milled features | High for milled features |
| Workflow Complexity | Simple turning workflows | Streamlined multi-process workflows | Complex programming workflows |
| Production Efficiency | High for pure turning | High for multi-feature parts | High for complex geometry |
| Typical Use Case | Rotational parts without milling | Integrated parts needing both processes | Aerospace, molds, complex surfaces |
A CNC lathe is ideal when parts are purely rotational and do not require milling features.
A five-axis machining center excels at machining complex surfaces but does not perform turning operations.
A turn-mill lathe bridges the gap by enabling complete machining of rotational parts with prismatic features in one setup.
Turn-mill machining is not about adding more axes—it is about eliminating unnecessary process steps.
A turn-mill lathe machine is typically the best solution when:
Parts require both turning and milling operations
Multiple setups are causing tolerance stack-up
Coaxiality and positional accuracy are critical
You want to reduce fixtures, handling, and work-in-process
In these cases, turn-mill machining improves both efficiency and dimensional consistency.
Turn-mill lathe machines are widely used for machining a broad range of materials, especially parts that require both rotational accuracy and prismatic features. Different materials place different demands on machine rigidity, tooling, spindle control, and process stability.
The table below summarizes commonly machined materials and the key machining considerations for turn-mill applications.
| Material Type | Typical Applications | Key Machining Requirements on Turn-Mill Lathes |
|---|---|---|
| Carbon Steel | Shafts, flanges, mechanical components | Stable turning performance, controlled cutting forces, consistent tool positioning to maintain coaxial accuracy between turned and milled features |
| Alloy Steel | Transmission parts, automotive components | Higher cutting forces, rigid machine structure, precise synchronization between turning and milling operations |
| Stainless Steel | Valves, fittings, precision components | Stable spindle torque, vibration control, reliable chip evacuation to protect surface finish and thread quality |
| Aluminum Alloys | Lightweight shafts, housings, aerospace parts | High spindle speed, fast acceleration, smooth tool transitions between turning and milling to maintain surface quality |
| Brass & Copper | Electrical connectors, precision fittings | Sharp tooling, controlled feed rates, accurate tool engagement to prevent burr formation |
| Titanium Alloys | Aerospace and high-performance components | Excellent rigidity, thermal stability, stable cutting conditions, careful process planning to protect tool life and part accuracy |
Unlike single-process machines, turn-mill lathes must maintain consistent performance across both turning and milling operations. Material properties directly affect:
Cutting forces and vibration behavior
Tool life and surface quality
Accuracy of coaxial and positional features
Overall cycle time and process stability
Matching the machine configuration and process strategy to the material ensures reliable and repeatable production.
Turn-mill machining is particularly advantageous for materials where:
Multiple features must remain accurately aligned
Re-clamping could introduce tolerance stack-up
Both rotational and prismatic features are required
For harder or more demanding materials, the ability to complete all operations in one setup reduces handling risk and improves dimensional consistency.
A turn-mill lathe is the right choice if:
Parts require both turning and milling features
Multiple setups are causing accuracy or efficiency issues
Coaxiality and positional precision are critical
You want to reduce fixtures, handling, and in-process inventory
In these cases, turn-mill machining often improves both productivity and quality.
Turn-mill machines are not five-axis replacements
They are not automatically faster for every part
Process planning and programming remain essential
When applied correctly, however, turn-mill machining can dramatically simplify manufacturing workflows.
Integrated turning and milling in one platform
Reduced setups and part handling
Improved accuracy and consistency
Lower work-in-process inventory
Ideal for complex rotational parts
Our turn-mill lathe machines are engineered to help manufacturers streamline production while maintaining high precision standards.
It is used to machine parts that require both turning and milling operations in a single setup.
A turn-mill machine adds milling capability to turning, enabling complete part machining in one system.
For multi-feature parts, yes—because it eliminates repositioning errors.
Shafts, discs, and parts requiring tight concentricity and multiple feature types.
A turn-mill machine is a CNC machine that combines turning and milling operations in a single platform, allowing complex parts to be completed in one setup. It is designed for components that require both rotational features and prismatic features while maintaining high positional and coaxial accuracy.
There is no fundamental technical difference between turn mill and mill turn. The terms are often used interchangeably.
However, in practice:
Turn-mill often emphasizes turning as the primary operation
Mill-turn often emphasizes milling capability on a lathe platform
Both refer to machines that integrate turning and milling in one CNC system.
Turning: the workpiece rotates while a stationary cutting tool removes material—ideal for cylindrical parts.
Milling: the cutting tool rotates and moves relative to the workpiece—ideal for flats, slots, and prismatic features.
Turn-mill machining combines both processes to handle complex geometries in one setup.
A CNC lathe is optimized primarily for turning operations.
A mill-turn machine adds driven tools and additional axes, enabling milling, drilling, and tapping operations without removing the part.
In short:
A mill-turn machine is a process-integrated upgrade, not just a basic lathe.
In theory, certain milling machines can perform limited turning operations with special fixtures.
In practice, this approach lacks rigidity, accuracy, and efficiency. A turn-mill machine is purpose-built to perform both operations reliably and accurately.
Milling alone cannot efficiently produce:
High-precision cylindrical features
Parts requiring strict coaxiality with turned surfaces
For such components, milling must be combined with turning—making turn-mill machining a better solution.
CNC machining can involve:
Higher initial investment
Programming and process planning requirements
Higher complexity compared to manual machining
However, for complex or high-precision parts, CNC—and especially turn-mill machining—offers superior consistency and efficiency.
NC (Numerical Control): early machines controlled by punched tape
CNC (Computer Numerical Control): modern computer-controlled machines
DNC (Direct Numerical Control): centralized control of multiple CNC machines
Modern turn-mill machines operate under CNC systems.
Turn-mill machining is not about adding complexity—it is about eliminating unnecessary steps. Our engineering team can help evaluate your parts and determine whether a turn-mill lathe machine is the optimal solution for your production goals.
Contact us today to discuss integrated turning and milling solutions.
