✅️ Turning & Milling in One Setup
✅️ Ø660 mm Swing | Ø400 mm Machining Capacity
✅️ Up to Ø65 mm Bar Capacity (Optional)
✅️ 30° Slant Bed for Stable Precision
✅️ For Complex & High-Efficiency Machining
| Quantity: | |
|---|---|
Taiz
The HMS-750MYS is a multi-axis CNC lathe that integrates turning and milling functions into a single machining platform.
With Y-axis control, main and sub-spindle coordination, and precision tool turret design, it allows complex parts to be completed in one setup, significantly improving production efficiency and dimensional accuracy.
This machine is especially suitable for manufacturers handling intricate geometries, multi-surface machining, and high-precision metal components.
Multi-Axis Precision Control
Enables complex turning and milling processes with high repeatability and stable accuracy.
Turning & Milling in One Setup
Reduces secondary operations, minimizes repositioning errors, and shortens overall production cycles.
High Structural Stability
Rigid machine construction ensures long-term machining consistency under continuous operation.
Improved Productivity
Optimized tool paths and integrated processes increase output while maintaining precision standards.
Flexible Production Capability
Suitable for both customized small batches and large-scale industrial manufacturing.
The HMS-750MYS CNC lathe is engineered with optimized technical specifications to meet the demands of high-precision, multi-process machining.

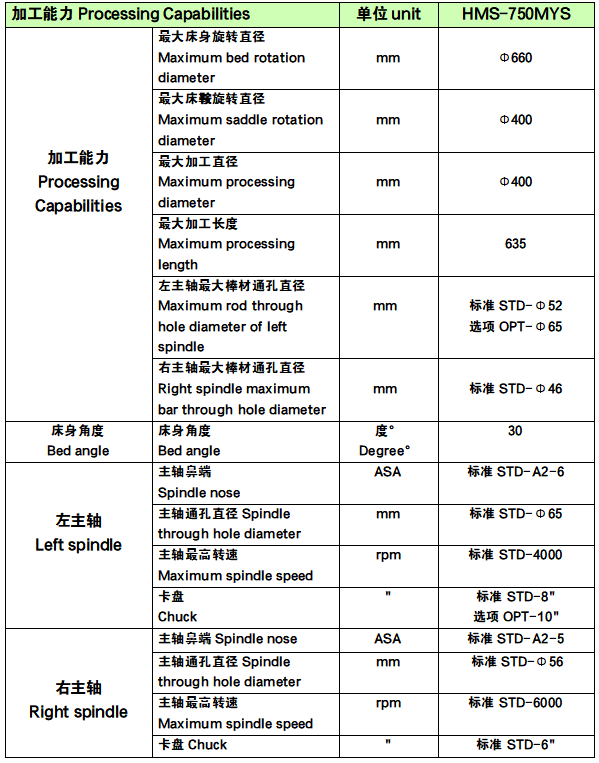

Processing Capabilities | Unit | HMS-750MYS |
|---|---|---|
Maximum bed rotation diameter | mm | Ø660 |
Maximum saddle rotation diameter | mm | Ø400 |
Maximum processing diameter | mm | Ø400 |
Maximum processing length | mm | 635 |
Maximum bar through hole diameter of left spindle | mm | STD Ø52 / OPT Ø65 |
Maximum bar through hole diameter of right spindle | mm | STD Ø46 |
Bed Angle | Unit | HMS-750MYS |
|---|---|---|
Bed angle | Degree (°) | 30 |
Left Spindle | Unit | HMS-750MYS |
|---|---|---|
Spindle nose | ASA | STD A2-6 |
Spindle through hole diameter | mm | STD Ø65 |
Maximum spindle speed | rpm | STD 4000 |
Chuck | inch | STD 8" / OPT 10" |
Right Spindle | Unit | HMS-750MYS |
|---|---|---|
Spindle nose | ASA | STD A2-5 |
Spindle through hole diameter | mm | STD Ø56 |
Maximum spindle speed | rpm | STD 6000 |
Chuck | inch | STD 6" |
The HMS-750MYS multi-axis CNC lathe is widely used across industries requiring precision, efficiency, and complex part processing.
Automotive Components
Ideal for machining shafts, hubs, connectors, and transmission-related precision parts.
Aerospace Parts Manufacturing
Suitable for high-tolerance structural components and complex metal geometries.
Hydraulic & Valve Components
Supports precise machining of valve bodies, fittings, and pressure-related components.
General Precision Metal Parts
Perfect for custom metal components requiring turning, milling, and multi-surface machining.
Choosing the HMS-750MYS means investing in a CNC lathe designed for precision, efficiency, and long-term reliability.
Consistent machining accuracy for demanding applications
Reduced setup time and lower production costs
Stable performance for continuous industrial use
Adaptable to diverse machining requirements and materials
This machine is built to support manufacturers aiming to improve productivity while maintaining strict quality standards.
Feature | HMS-750MYS Multi-Axis CNC Lathe | Conventional CNC Lathe |
|---|---|---|
Machining Capability | Turning + Milling | Turning only |
Setup Process | One-time setup | Multiple setups |
Complex Part Handling | Excellent | Limited |
Production Efficiency | High | Moderate |
Precision Stability | Long-term consistency | Affected by multiple operations |
Yes. The multi-axis control and integrated turning-milling design allow complex parts to be completed in a single setup with high accuracy.
Automotive, aerospace, hydraulic systems, and precision metal parts manufacturing are the primary industries.
Absolutely. The machine is designed for flexible production, making it suitable for both customized orders and large-scale manufacturing.
It supports a wide range of materials, including steel, stainless steel, aluminum alloys, and other common industrial metals.
Yes. By combining multiple machining processes into one setup, it significantly reduces processing time and operational errors.
If you are looking for a high-precision multi-axis CNC lathe machine to enhance your machining capabilities, the HMS-750MYS is a reliable solution for modern manufacturing needs.
Contact us today to receive detailed specifications, configuration options, and pricing support.
