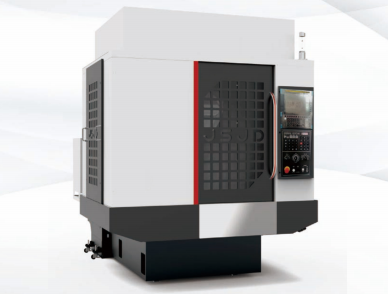

Drilling And Tapping Machining Center

High-Speed CNC Solutions for Efficient Drilling and Threading Operations

A Drilling and Tapping Machining Center (also known as a Drill Tap Center) is a CNC machine purpose-built for high-speed drilling, tapping, and light milling operations. Unlike general-purpose vertical machining centers, drill tap machines are optimized for short cycle times, high spindle speeds, and stable tapping performance, making them ideal for high-volume production of small to medium-sized parts.

These machines are widely used where drilling and tapping operations dominate the machining process and production efficiency is a top priority.

Understanding Drilling, Tapping, and Their Combination in CNC Machining

Drilling and tapping are two of the most common and time-critical operations in CNC machining. In high-volume production, the efficiency and stability of these operations have a direct impact on cycle time, thread quality, and overall manufacturing cost.

What Is Drilling in CNC Machining?

Drilling is the machining process used to create round holes in a workpiece using a rotating cutting tool (drill bit). In CNC production, drilling operations often represent a significant portion of total machining time, especially for parts with a high hole count.

Key characteristics of CNC drilling include:

• High spindle speed requirements

• Frequent tool changes for different hole sizes

• Sensitivity to positioning accuracy

• Direct influence on downstream tapping quality

In drilling-intensive applications, reducing drilling time per hole can significantly improve overall productivity.

What Is Tapping in CNC Machining?

Tapping is the process of creating internal threads inside a pre-drilled hole. Compared to drilling, tapping places higher demands on spindle synchronization and motion control, as thread accuracy depends on precise coordination between spindle rotation and feed rate.

Key aspects of CNC tapping include:

• Accurate spindle-feed synchronization

• Consistent thread depth and pitch

• Reduced risk of tap breakage

• Stable performance at high speeds

In mass production, unstable tapping can lead to broken tools, scrap parts, and unexpected downtime—making tapping reliability just as important as speed.

Why Combine Drilling and Tapping in One Machining Center?

In many CNC parts, drilling and tapping are consecutive operations performed on the same hole. A drilling and tapping machining center is specifically designed to optimize this workflow.

By combining drilling and tapping in a single, high-speed platform:

• Tool changes between drilling and tapping are minimized

• Hole position accuracy is maintained without re-clamping

• Cycle time is reduced through faster spindle acceleration and deceleration

• Thread quality is improved through stable tapping control

This integration is especially valuable for parts with multiple threaded holes, where even small time savings per hole translate into significant cost reductions over large production volumes.

Drilling & Tapping as a Production Strategy

Rather than viewing drilling and tapping as individual operations, modern manufacturing treats them as a combined production strategy:

• Drilling creates the foundation for accurate and repeatable threads

• Tapping completes the functional feature required for assembly

• A dedicated drilling and tapping machining center ensures both processes are optimized together

For manufacturers focused on throughput, consistency, and cost efficiency, combining drilling and tapping in a purpose-built CNC machine often delivers better results than using a general-purpose machining center.

Why This Explanation Matters for Machine Selection

Understanding the difference between drilling, tapping, and their combined optimization helps clarify why a drilling and tapping machining center exists as a separate machine category.

If your parts are dominated by:

• High hole counts

• Repetitive drilling and tapping

• Tight production schedules

Then a machine designed specifically for drilling and tapping will typically outperform a general-purpose solution in both speed and reliability.

What Is a Drilling and Tapping Machining Center?

A drilling and tapping machining center is designed around a lightweight, high-speed structure that enables rapid acceleration, fast tool changes, and precise spindle synchronization for tapping.

Key characteristics include:

• High-RPM spindle optimized for drilling and tapping

• Fast tool change systems to reduce non-cutting time

• Stable rigid or synchronous tapping capability

• Compact footprint for efficient shop layout

Rather than replacing a VMC, a drill tap center complements it by excelling in speed-driven applications.

Why Drilling & Tapping Centers Are Faster Than VMCs

Drilling and tapping centers achieve higher productivity by focusing on motion efficiency rather than cutting force:

• Lightweight moving components allow faster acceleration and deceleration

• High spindle speeds shorten drilling time per hole

• Short tool-change times reduce idle time between operations

• Optimized tapping control maintains speed synchronization and thread accuracy

For parts with a high number of holes and threads, these factors translate directly into shorter cycle times and lower cost per part.

Key Advantages for High-Volume CNC Production

Drilling and tapping machining centers are especially valuable in batch and mass production environments:

• Significantly reduced cycle time

• Lower unit manufacturing cost

• Consistent hole quality and thread accuracy

• Improved production repeatability

• Higher output with the same floor space

When drilling and tapping account for most of the machining time, a dedicated drill tap center often delivers better ROI than a general-purpose VMC.

Typical Parts Machined on Drilling & Tapping Centers

Instead of focusing on industries, drilling and tapping centers are best defined by part characteristics, such as:

• High hole count plates or housings

• Parts with extensive tapping operations

• Small to medium aluminum components

• Thin-wall or lightweight structural parts

• Components requiring fast, repetitive machining

These machines are commonly used for electronic housings, automotive brackets, hardware components, and similar products.

Materials Commonly Used in Drilling & Tapping Operations

Drilling and tapping machining centers perform best with materials that benefit from high spindle speed and stable tapping control:

• Aluminum alloys

• Mild and low-carbon steels

• Brass and copper

• Engineering plastics

They are not intended for heavy roughing or deep cutting in hard steels, where a conventional VMC or HMC would be more suitable.

Drilling & Tapping Center vs Vertical Machining Center (VMC)

The difference between a drilling and tapping center and a VMC lies in production strategy, not just machine size.

• Choose a drilling & tapping center when:

• Drilling and tapping dominate the process

• Cycle time is critical

• Parts are small to medium in size

• High repeatability and throughput are required

• Choose a VMC when:

• Milling and heavy cutting are primary operations

• Part variety is high

• Flexibility is more important than speed

Understanding this distinction helps prevent over-investment or under-utilization.

Key Factors When Choosing a Drilling & Tapping Machining Center

Before selecting a drill tap center, consider:

• Spindle speed and acceleration capability

• Tool change time

• Tapping method (rigid or synchronous tapping)

• Hole quantity per part

• Required production volume and takt time

A machine optimized for your dominant operation will always outperform a general-purpose solution.

Common Misunderstandings About Drilling & Tapping Centers

• Drill tap centers are not “low-end” machines
  They are specialized tools designed for efficiency, not reduced quality.

• High speed does not mean low accuracy
  Proper tapping control ensures reliable thread quality.

• They are not limited to drilling only
  Light milling operations are often performed effectively.

Understanding these points helps manufacturers choose the right machine for the right job.

Advantages of Our Drilling & Tapping Machining Centers

• High-speed spindle systems for fast drilling

• Stable tapping control for consistent thread quality

• Fast tool change to minimize idle time

• Compact, efficient machine design

• Ideal for high-volume CNC production

Our drilling and tapping machining centers are engineered to maximize efficiency where drilling and threading operations dominate the process.

Frequently Asked Questions

What is a drilling and tapping machining center used for?

It is used for high-speed drilling, tapping, and light milling of small to medium-sized parts.

Is a drill tap center faster than a VMC?

Yes, for drilling- and tapping-intensive parts, it is typically much faster.

Can a drilling and tapping center do milling?

Yes, light milling operations are possible, though it is not designed for heavy cutting.

What materials are best for drill tap machines?

Aluminum, mild steel, brass, and similar easy-to-machine materials.

What does drilling and tapping mean?

Drilling and tapping refers to a combined machining process where a hole is first created (drilling) and then internal threads are formed inside that hole (tapping). In CNC manufacturing, these two operations are often performed sequentially on the same feature and are critical for parts that require threaded fasteners or assemblies.

What is tapping machining?

Tapping machining is the process of cutting internal threads inside a pre-drilled hole using a tap tool. In CNC machining, tapping requires precise synchronization between spindle rotation and feed movement to ensure accurate thread pitch, depth, and consistency.

Do you tap or drill first?

Drilling is always performed before tapping. A correctly sized drilled hole provides the foundation for accurate and stable thread formation during tapping. Improper hole size can result in poor thread quality or tap breakage.

Can tapping be done on a drilling machine?

Yes, tapping can be performed on some drilling machines, especially those equipped with tapping attachments. However, for high-speed or high-volume production, CNC drilling and tapping machining centers offer significantly better control, accuracy, and efficiency.

Can a CNC machine drill?

Yes. CNC machines commonly perform drilling operations with high accuracy and repeatability. CNC drilling ensures precise hole positioning, consistent depth, and efficient multi-hole machining, especially in production environments.

What is a CNC drilling machine?

A CNC drilling machine is a CNC-controlled system designed primarily for drilling operations. It automates hole positioning, depth control, and feed rates, making it suitable for parts with a large number of holes or repetitive drilling tasks.

What is drilling in machining?

Drilling in machining is the process of creating round holes in a workpiece using a rotating cutting tool. It is often the first step in many machining processes and directly affects subsequent operations such as tapping, reaming, or threading.

What is a machining center?

A machining center is a CNC machine capable of performing multiple machining operations—such as drilling, tapping, and milling—within a single setup. Machining centers improve efficiency by reducing manual intervention and increasing process consistency.

What is the difference between a machining center and a turning center?

A machining center primarily performs milling-based operations (drilling, tapping, milling), while a turning center focuses on rotational machining where the workpiece spins (turning). Each is optimized for different part geometries and production requirements.

What are the three types of tapping?

The three common tapping methods are:

• Rigid tapping – spindle and feed are synchronized for precise control

• Floating tapping – uses a tension/compression holder to absorb feed errors

• Form tapping – forms threads by deformation rather than cutting

CNC drilling and tapping centers typically support rigid tapping for high accuracy.

What is a tapping machine called?

A tapping machine may be referred to as a tapping center, drill tap machine, or drilling and tapping machining center, depending on its design and functionality. In CNC environments, these machines are optimized for speed and thread consistency.

What is a pre-drilled hole called?

A pre-drilled hole is commonly referred to as a pilot hole or tap drill hole, depending on its purpose. In tapping operations, it provides the correct diameter needed to form internal threads accurately.

Improve Your Production Efficiency

For high-speed drilling and tapping applications, machine selection has a direct impact on cycle time and production cost. Our engineers can help evaluate your parts and determine whether a drilling and tapping machining center is the most efficient solution for your manufacturing needs.

Contact us today to optimize your drilling and tapping production.
