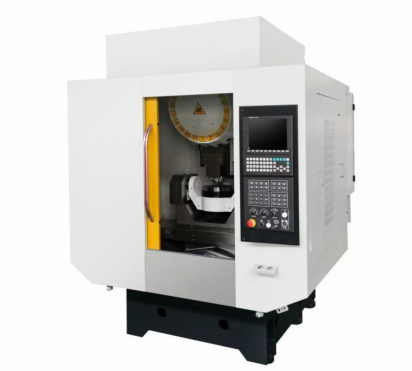

U260
TAIZHENG
TZ-U260
5-axis high precision machining centers are high-tech machines that can move a cutting tool or part along five axes at the same time: X, Y, Z, and two rotating axes (A and B). With this feature, very complicated parts can be made with great accuracy and surface finish, and this can usually be done in a single setup. In fields like aircraft, medicine, and auto, where tight tolerances and complicated shapes are important, these machining centers are a must. Five-axis machines are an important part of modern precision engineering because they cut down on the need for multiple setups and human help. This increases output, reduces errors, and shortens lead times.
The U-260 supports simultaneous movement across five axes, enabling efficient machining of complex contours, angled surfaces, and multi-face parts in one operation. This reduces setup time and improves machining accuracy.
Equipped with a 20,000 rpm spindle and HSK-A63 interface, the machine delivers high-speed cutting performance and stable tool clamping, ensuring excellent surface finish and precision.
The integrated rotary table supports up to 250 kg load capacity, providing strong clamping force and stable positioning for multi-angle machining operations.
With positioning accuracy of 0.005 mm and repeatability of 0.003 mm, the TMU-400 ensures reliable performance for precision-critical applications.
Item | Specification |
|---|---|
X-axis stroke (mm) | 600 (including blade change) |
Y-axis stroke (mm) | 450 |
Z-axis stroke (mm) | 330 |
Axis A stroke (°) | +120 |
C-axis stroke (°) | 360 |
Item | Specification |
|---|---|
Worktable size and maximum turning diameter (mm) | Φ260 / Φ400 |
Maximum load (kg) | 60 |
Distance from spindle end to worktable (mm) | 55 – 385 |
Peak torque (N·m) | Axis A: 259, Axis C: 121 |
Item | Specification |
|---|---|
Main shaft power (kW) | 5.5/7.5 kW |
Spindle torque (N·m) | 17.5/43 N·m |
Spindle speed (r/min) | 20000 |
Item | Specification |
|---|---|
X/Y/Z axis positioning accuracy (mm) | 0.005 / 0.005 / 0.005 |
X/Y/Z axis repeat positioning accuracy (mm) | 0.003 / 0.003 / 0.003 |
A/C axis positioning accuracy (″) | ±10 |
A/C axis repeat positioning accuracy (″) | ±5 |
Item | Specification |
|---|---|
Height (mm) | 1750 |
Occupied area (mm²) | 2350*2600 |
Weight (kg) | 3500 |
Suitable for machining complex structural parts, impellers, and high-precision aluminum or alloy components.
Ideal for surgical components and precision medical parts requiring tight tolerances and smooth surface finishes.
Used for prototype parts, molds, and high-precision automotive components.
Applicable for manufacturing precision housings, connectors, and tooling fixtures.
TAIZ provides stable and precision-engineered machining centers designed for long-term industrial use.
Professional support helps customers choose the right configuration based on workpiece requirements.
Each machine undergoes strict inspection and performance testing before delivery.
Installation guidance, training, and maintenance support ensure stable operation.
A 5 axis CNC machining center is a machine tool that can move a workpiece or tool along five different axes simultaneously to machine complex parts with high precision.
It is suitable for aerospace, medical, automotive, 3C electronics, and precision tooling industries.
The U-260 features a high-speed spindle with a maximum speed of 20,000 rpm.
The maximum table load capacity is 250 kg.
It is equipped with a 21-tool magazine for efficient machining operations.
Positioning accuracy is 0.005 mm and repeatability is 0.003 mm.
