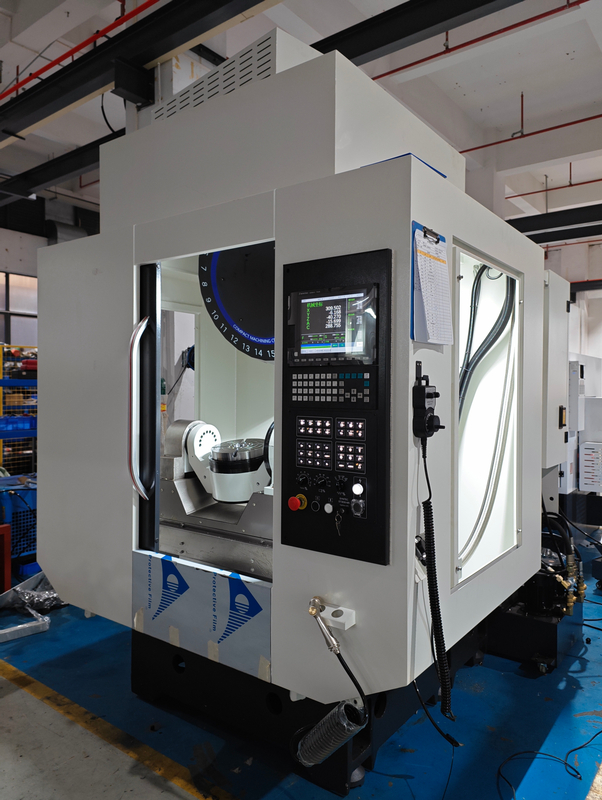

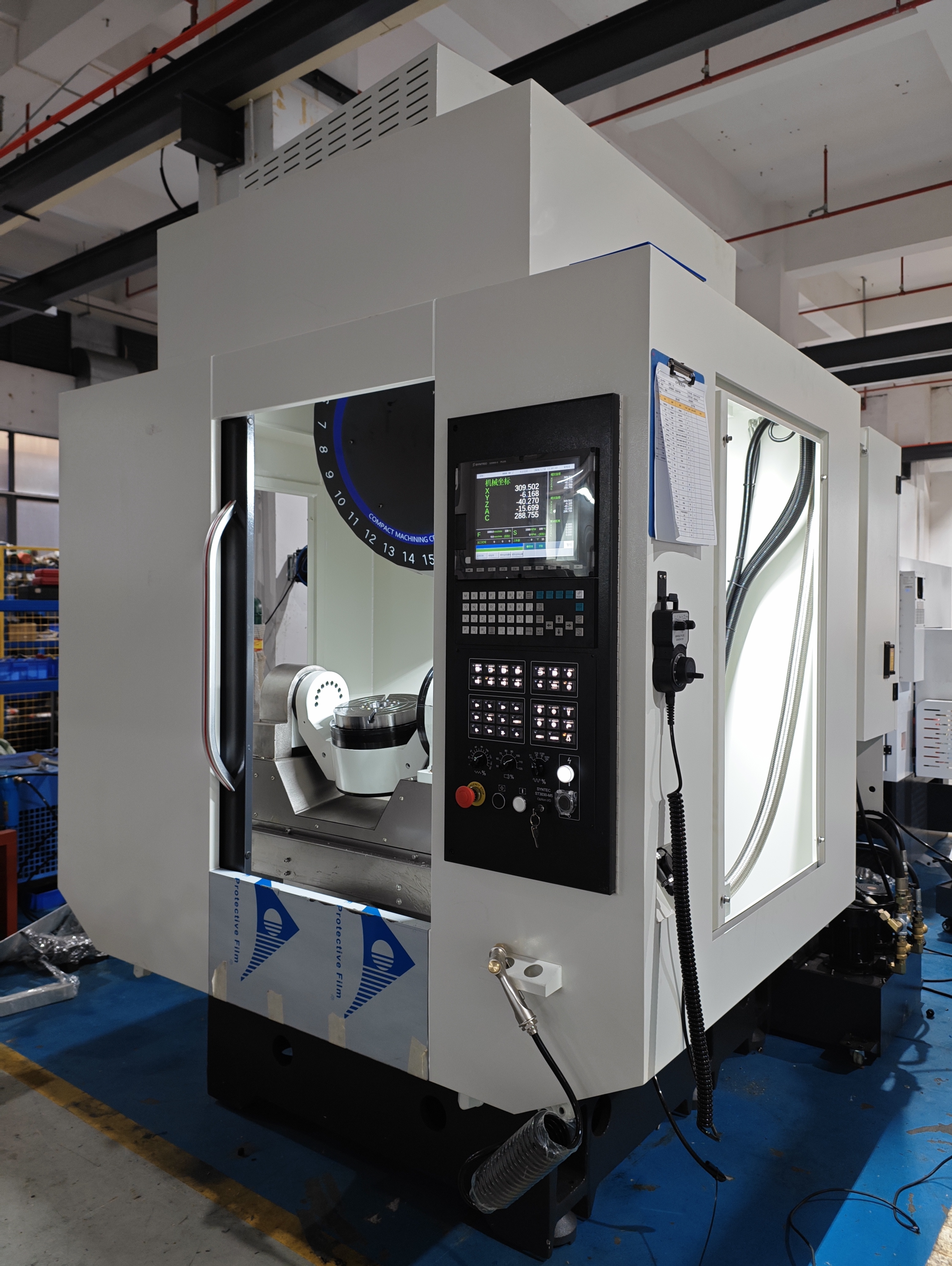

T600-5
TAIZHENG
TZ-T600-5
5-axis high precision machining centers are high-tech machines that can move a cutting tool or part along five axes at the same time: X, Y, Z, and two rotating axes (A and C). With this feature, very complicated parts can be made with great accuracy and surface finish, and this can usually be done in a single setup. In fields like medicine, 3C, mold and small complex parts, where tight tolerances and complicated shapes are important, these machining centers are a must. Five-axis machines are an important part of modern precision engineering because they cut down on the need for multiple setups and human help. This increases output, reduces errors, and shortens lead times.
The T600-5 supports simultaneous movement across five axes, enabling efficient machining of complex contours, angled surfaces, and multi-face small parts in one operation. This reduces setup time and improves machining accuracy.
Equipped with a 20,000 rpm BT30 spindle, the machine delivers high-speed cutting performance and stable tool clamping, ensuring excellent surface finish and precision.

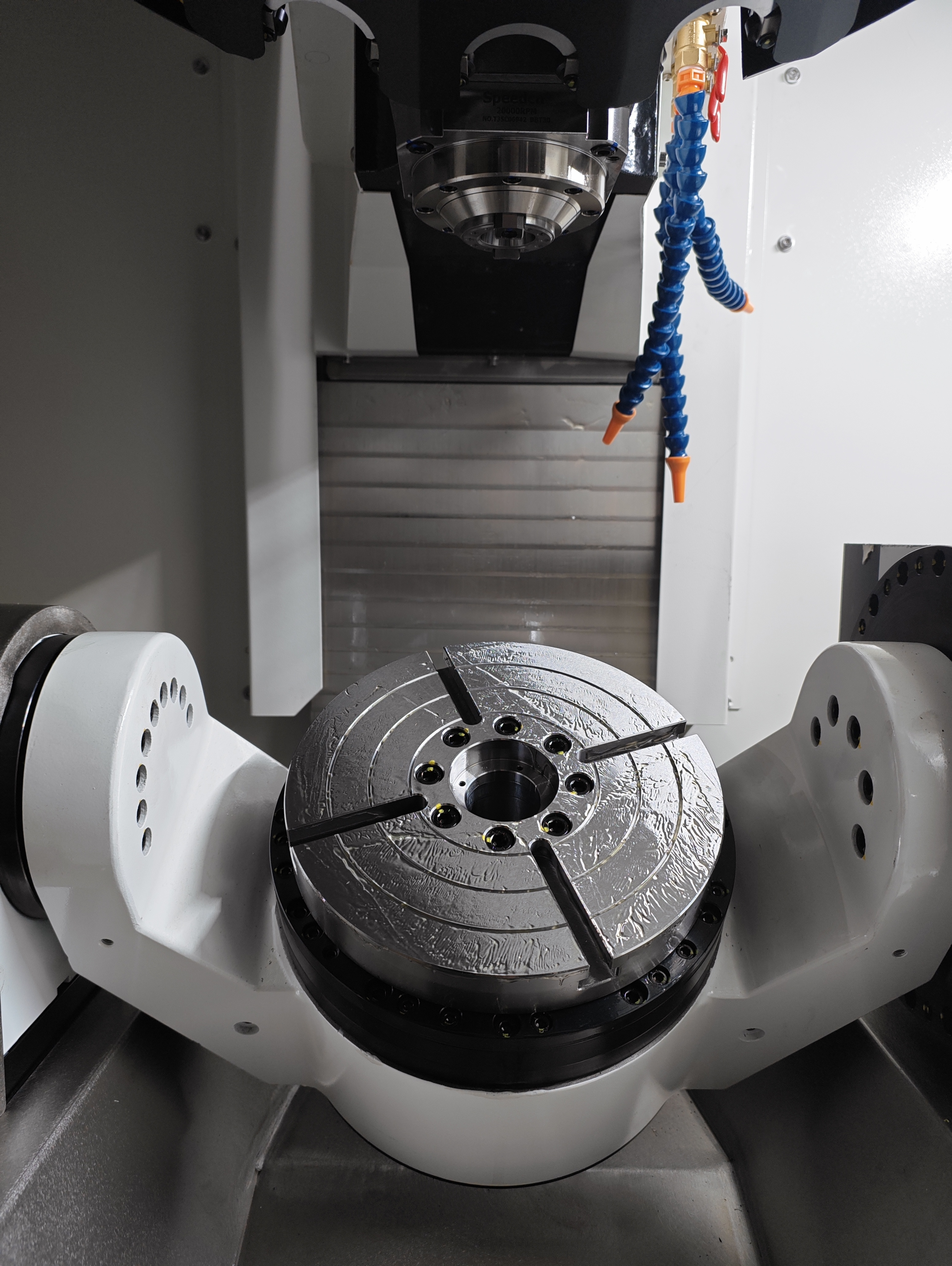

The integrated DRT260-400 5-axis cradle supports up to 60 kg load capacity, providing strong clamping force and stable positioning for multi-angle machining operations.
With positioning accuracy of 0.005 mm/300mm and repeatability of 0.003 mm/300mm, the T600-5 ensures reliable performance for precision-critical applications.
Item | Specification |
|---|---|
X-axis stroke (mm) | 600 |
Y-axis stroke (mm) | 450 |
Z-axis stroke (mm) | 300 |
A-axis stroke (°) | ±120 |
C-axis stroke (°) | 360 |
Item | Specification |
|---|---|
X/Y/Z axis fast movement speed (m/min) | 36 / 36 / 36 |
A axis maximum speed (rpm) | 189 |
C axis maximum speed (rpm) | 356 |
Item | Specification |
|---|---|
Worktable size (mm) | Φ260 |
Maximum load (kg) | 60 |
Distance from spindle end to worktable (mm) | 55 – 385 |
Rated torque (N·m) | Axis A: 259, Axis C: 122 |
Positioning accuracy (″) | Axis A: ±8, Axis C: ±8 |
Repeat positioning accuracy (″) | Axis A: ±5, Axis C: ±5 |
Braking method | Air |
Item | Specification |
|---|---|
Spindle taper | BT30 / Ø100 |
Spindle motor power (kW) | 5.5 |
Spindle speed (rpm) | 20,000 |
Item | Specification |
|---|---|
Tool magazine type | Disc arm |
Number of tools | 26 |
Item | Specification |
|---|---|
X/Y/Z axis positioning accuracy (mm) | 0.005 / 300 |
X/Y/Z axis repeat positioning accuracy (mm) | 0.003 / 300 |
Item | Specification |
|---|---|
Overall dimensions (mm) | 1750 × 2351 × 2400 |
Weight (kg) | 3500 |
Total electrical capacity (KVA) | 25 |
Air pressure (kg/cm²) | 6 |
Ideal for small surgical components and precision medical parts requiring tight tolerances and smooth surface finishes.
Applicable for manufacturing precision small housings, connectors, and tooling fixtures.
Perfect for small precision molds and complex-shaped components with multi-angle features.
Ruian provides stable and precision-engineered machining centers designed for long-term industrial use.
Professional support helps customers choose the right configuration based on workpiece requirements.
Each machine undergoes strict inspection and performance testing before delivery.
Installation guidance, training, and maintenance support ensure stable operation, with one-year parts warranty.
What is a 5 axis CNC machining center?
A 5 axis CNC machining center is a machine tool that can move a workpiece or tool along five different axes simultaneously to machine complex parts with high precision.
What industries is the T600-5 suitable for?
It is suitable for medical, 3C electronics, mold, and small complex precision parts industries.
What is the spindle speed of the T600-5?
The T600-5 features a high-speed spindle with a maximum speed of 20,000 rpm.
What is the maximum table load?
The maximum table load capacity is 60 kg.
How many tools does the machine support?
It is equipped with a 26-position disc tool magazine for efficient machining operations.
What accuracy can the T600-5 achieve?
Positioning accuracy is 0.005 mm/300mm and repeatability is 0.003 mm/300mm.
