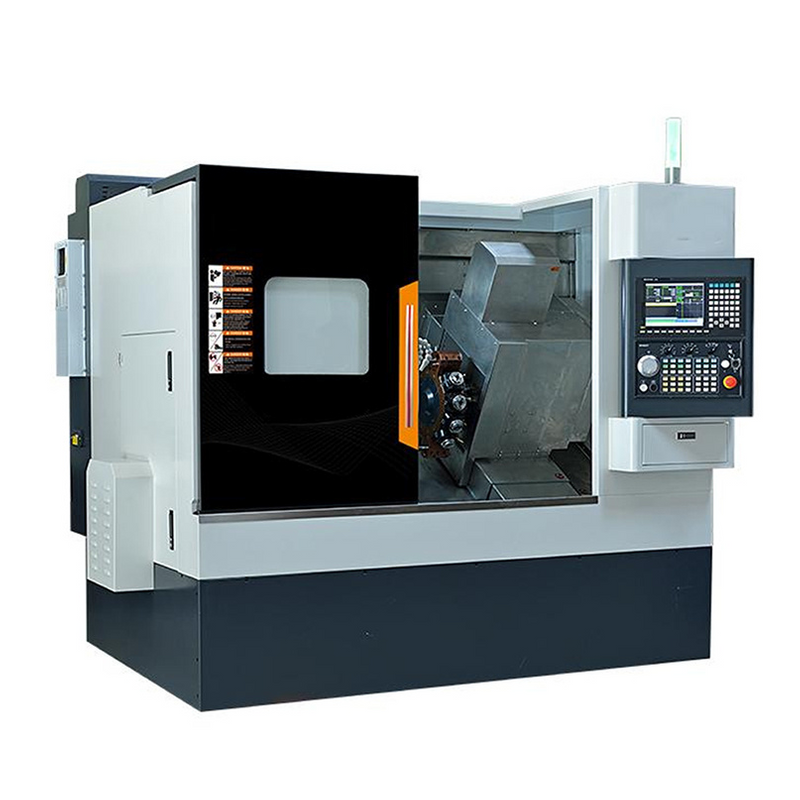

RA-46MY
TAIZ
TZ-003
A turning-milling composite machine tool is a high-end CNC machine tool that integrates turning and milling functions. This machine tool can perform multiple machining operations on a single unit, thereby improving machining efficiency and precision while reducing the time and cost associated with transferring workpieces between different machines.
Multi-functional machining capabilities: Capable of performing various machining operations—including turning, milling, drilling, and tapping—on a single machine tool.
High Precision: Equipped with high-performance servo drive systems and precision measuring devices to ensure machining accuracy.
High Efficiency: By combining multiple machining operations, the number of workpiece setups and transfers between machines is reduced, significantly improving machining efficiency.
Automation: Supports automatic tool changing and automatic feeding systems, enabling unmanned or minimally staffed operation.
Flexibility: Suitable for machining a wide range of materials and complex-shaped workpieces, offering excellent adaptability.
Precision Machining of Mechanical Parts: Used for machining mechanical parts that require high precision and complex shapes.
Automotive Parts Manufacturing: Suitable for precision machining of automotive components such as engine parts and transmission parts.
Aerospace Industry: Used for machining complex parts in the aerospace sector, such as turbine blades and aircraft structural components.
Medical Devices: Suitable for the precision machining of medical devices, such as implants and surgical instruments.
Electronics Manufacturing: Used for machining small, precision parts in the electronics industry, such as mobile phone components and computer parts.
With their integrated milling and turning capabilities, high precision, and high efficiency, TAIZ’s mill-turn machines offer an advanced machining solution for a wide range of industries, helping customers improve product quality and production efficiency.
Processing Capability | Unit | RA-46MY | ||
Processing Capability | Maximum bed swivel diameter | mm | Φ560 | |
Maximum machining diameter | mm | Φ520 | ||
Maximum machining diameter on the tool holder | mm | Φ128 | ||
Maximum processing length | mm | Φ320 | ||
Maximum bar through-hole diameter | mm | 46 | ||
Machining dimensions will change with turret selection. | ||||

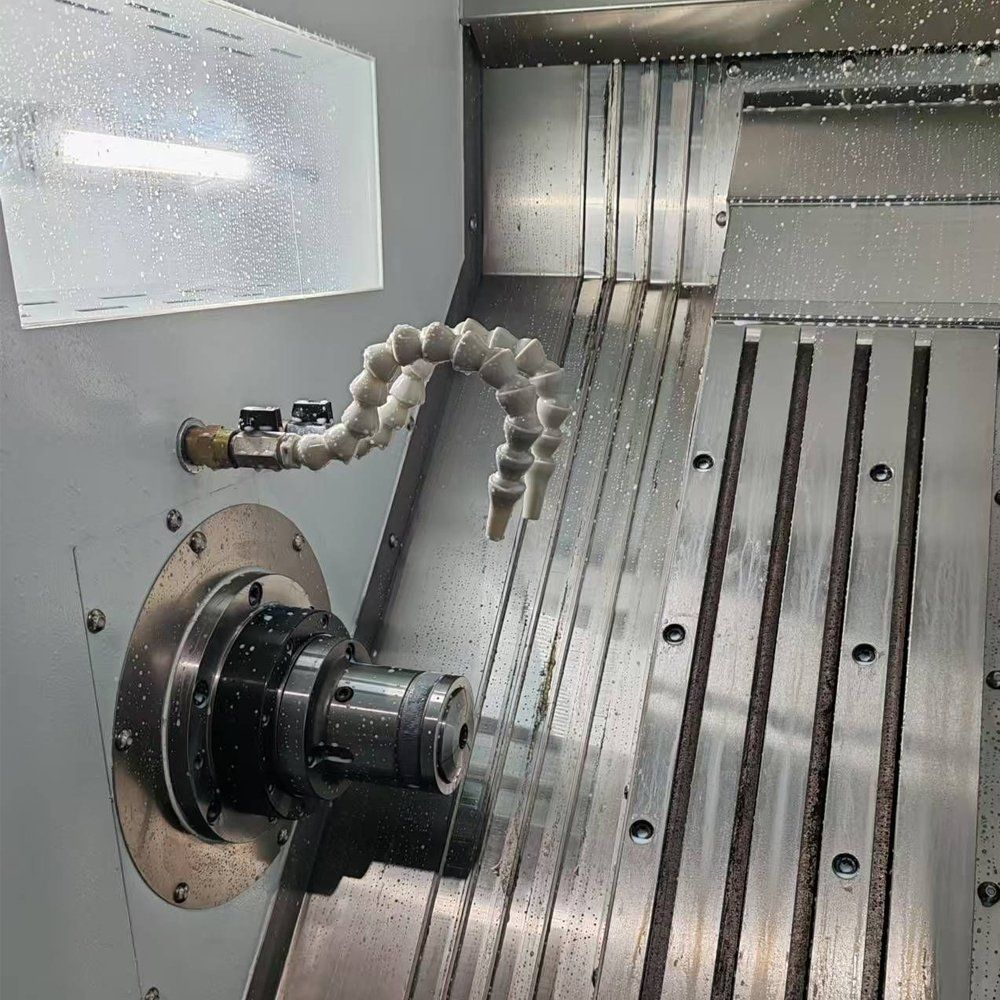

Spindle | Nose of spindle | ASA | A2-5 | |
Spindle through-hole diameter | mm | Φ56 | ||
Maximum spindle speed | rpm | 4500 | ||
Hydraulic cylinders/chucks | Inch | 6'' | ||
Axis feed | Axis travel | X-Axis | mm | 270 |
Z-Axis | mm | 400 | ||
Y-Axis | mm | ±35 | ||
Travel Speed | X-Axis | mm | 24 | |
Z-Axis | mm | 24 | ||
Y-Axis | mm | 10 | ||
Rail Type | / | Linear track 35 (ball) | ||

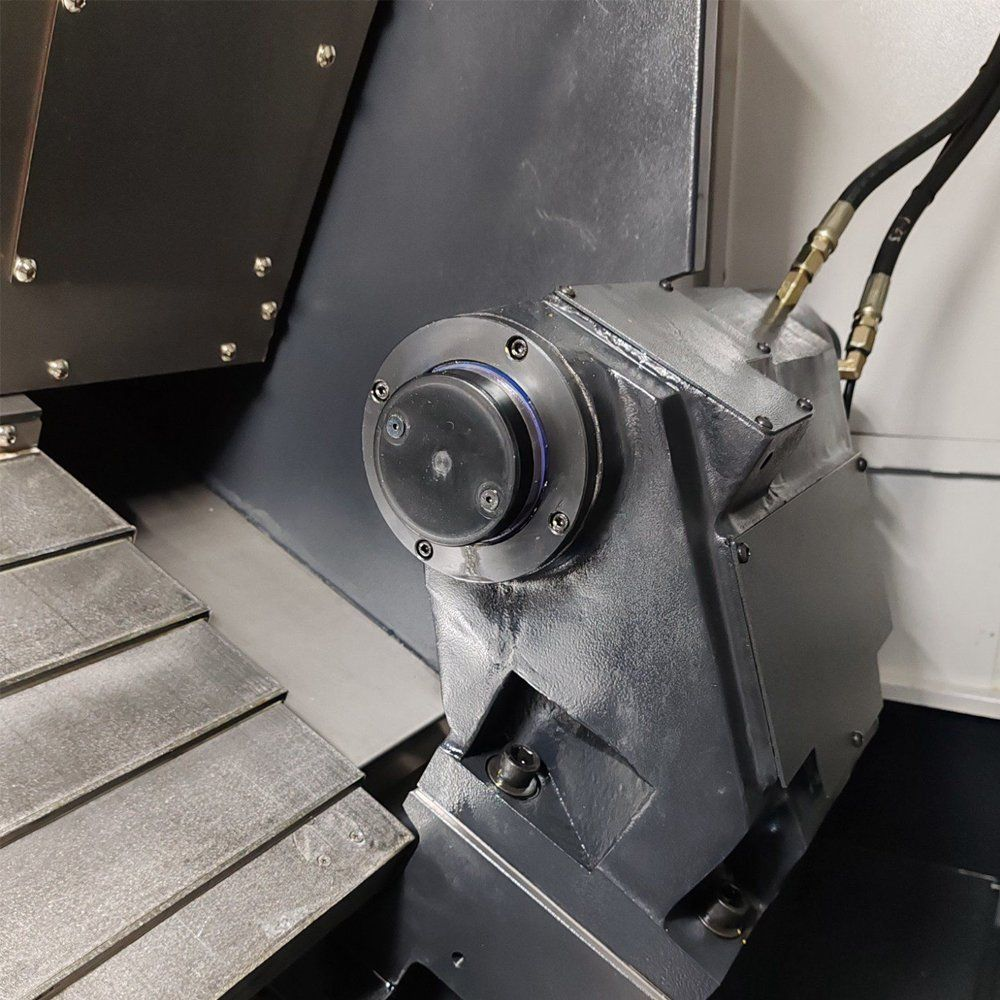

Turret | Number of tool positions | pcs | BMT40-12T with Y-axis | |
OD tool holder specifications | mm | 20×20 | ||
I.D. Tool Holder Specifications | mm | Φ25 | ||
1. What are the Payment Terms?
A: Our payment terms include a T/T arrangement, where an initial payment of 40% is required upon ordering, with the remaining 60% balance due before shipment.
2. What are your trade terms?
A: We accommodate various trade terms including FOB, CFR, and CIF, offering flexibility to match your logistical needs.
3. When is the delivery time?
A: For our standard industrial cutting machines, preparation is typically completed within 30 days. Custom or special machines may require additional time. Please place your order according to the delivery timeline we provide.
4. What is your minimum order quantity and warranty?
A: We have a minimum order quantity (MOQ) of one set and proudly offer a comprehensive one-year warranty on our cutting tools.
5. How are the machines packaged?
A: To ensure safe transport, our machines are meticulously packaged in robust wooden cases.
6. How can I choose the most suitable machines?
A: Simply provide us with your specific requirements and we will recommend the most fitting model for your needs. Alternatively, you may select the exact model that suits you best.
You are also welcome to send us your product drawings, and our team will assist in selecting the most appropriate machines
