Transitioning from manual turning to Computer Numerical Control (CNC) is a mandatory evolution for scaling precision, repeatability, and throughput in modern manufacturing. Procuring machining equipment without a granular understanding of its mechanical capabilities, axis configurations, and programming requirements introduces severe capital risk. Misaligning machine specifications with production needs directly leads to bottlenecked cycle times, safety hazards, and scrapped parts. You need to know exactly what happens inside the enclosure before signing a purchase order. This guide breaks down CNC lathe mechanics, operational workflows, and evaluation criteria to bridge the gap between technical understanding and strategic procurement. We will look at spindle dynamics, tooling setups, and control systems. By understanding the physical forces at play, you can match the right iron to your specific part prints and shop floor capabilities.
Mechanical Foundation: A CNC lathe machine operates on the principle of subtractive manufacturing, rotating a workpiece at high speeds while stationary cutting tools remove material to create cylindrical profiles.
Component Synergy: Precision is dictated by the rigidity of the machine bed, the thermal stability of the spindle, and the rapid indexing capabilities of the tool turret.
Programming Logic: Operations are governed by G-code and M-code, translating CAD/CAM models into exact coordinate movements and auxiliary machine functions.
Procurement Reality: Selecting the right lathe requires balancing axis complexity (e.g., 2-axis vs. multi-axis with live tooling) against operator skill levels, maintenance overhead, safety protocols, and specific part-print tolerances.
Table of Contents

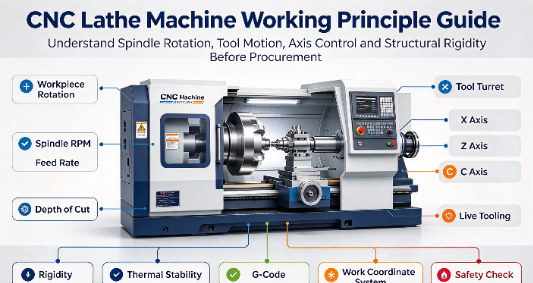

Understanding exactly how does a CNC lathe work requires examining the physics of subtractive manufacturing. The turning principle relies on a fundamental interaction between a rotating workpiece and a stationary cutting tool. The main spindle secures and rotates the raw material, generating the necessary cutting speed. Simultaneously, the machine's servo motors drive the cutting tool into the material, establishing the feed rate and depth of cut. This continuous shearing action removes metal in the form of chips, gradually shaping the raw stock into a precise cylindrical profile.
The Machine Control Unit (MCU) acts as the brain of the operation, synchronizing the spindle revolutions per minute (RPM) with the tool's feed rate. Advanced controllers utilize a feature called Constant Surface Speed (CSS), typically programmed as G96. As the cutting tool moves closer to the centerline of the workpiece, the diameter decreases. To maintain a consistent cutting speed at the tool tip, the MCU automatically increases the spindle RPM. This synchronization ensures optimal surface finishes, prevents built-up edge (BUE) on the carbide inserts, and maximizes material removal rates during heavy roughing passes.

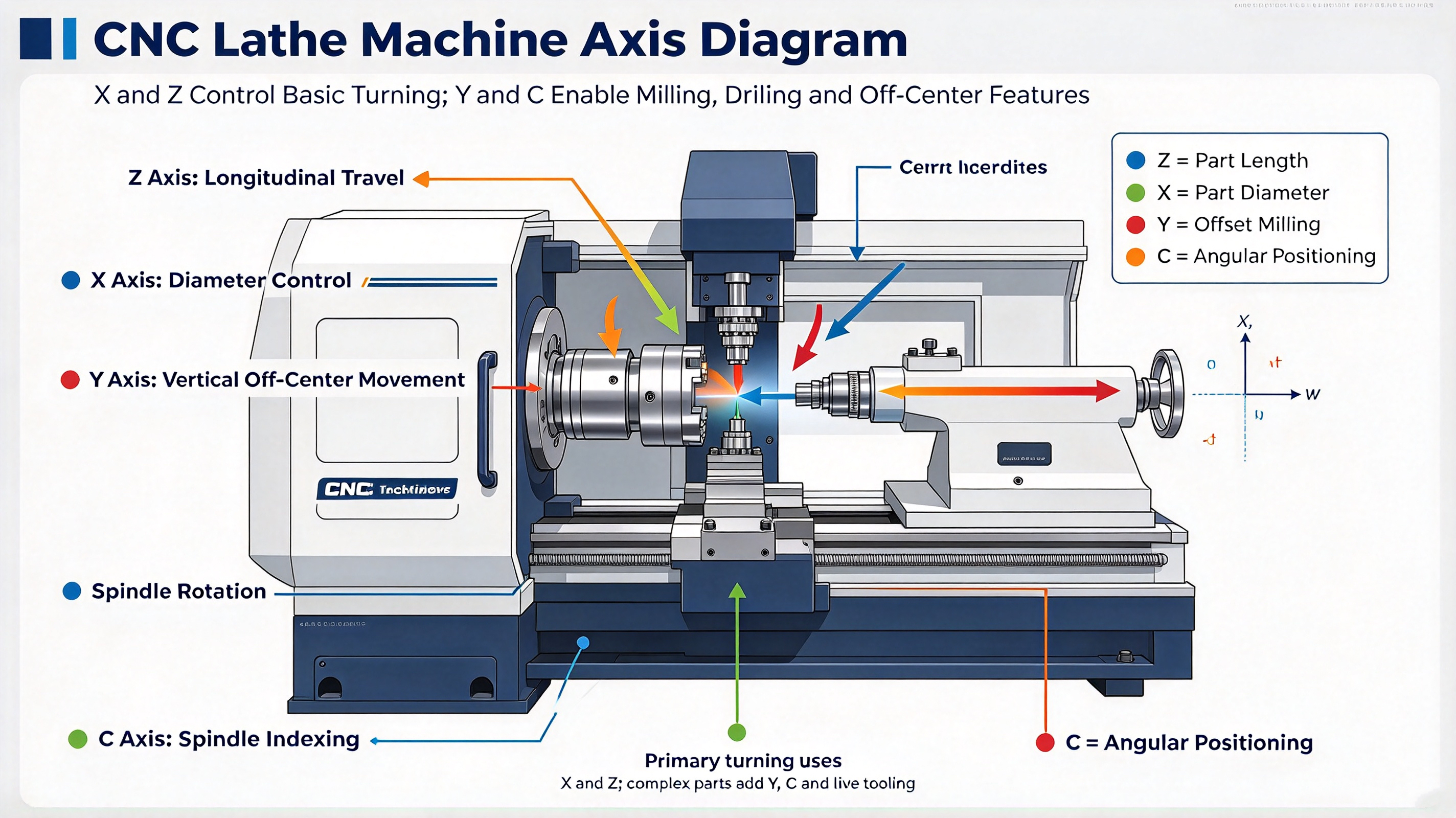

A CNC lathe uses different axes to control tool movement and machining operations. The Z-axis moves the tool along the length of the workpiece, while the X-axis controls the cutting diameter. The Y-axis allows off-center drilling, milling, and tapping. The C-axis controls spindle positioning, allowing the machine to make features such as flats, hexes, and cross-holes with live tooling.
Evaluating a CNC Lathe Machine requires a detailed inspection of its structural and mechanical components. The synergy between these elements determines the machine's overall rigidity, accuracy, and production capacity on the shop floor.
The spindle rotates the workpiece and affects cutting speed, torque, and accuracy. Belt-driven spindles provide high torque for heavy cutting, while direct-drive spindles offer faster acceleration for smaller parts. Hydraulic chucks provide strong clamping for heavy work, while collets provide even clamping and are suitable for thin-walled parts and fast changeovers.
The turret holds and changes cutting tools during machining. An 8-station turret is suitable for simple parts, while 12- or 24-station turrets provide more tools for complex or high-volume work. VDI holders allow quick tool changes, while BMT holders provide higher rigidity for heavy milling.
The bed provides the main support for the machine, while slant-bed designs improve rigidity and help move chips and coolant away from the cutting area. Guideways control axis movement, with linear guideways offering fast movement and box guideways providing strong support for heavy cutting.

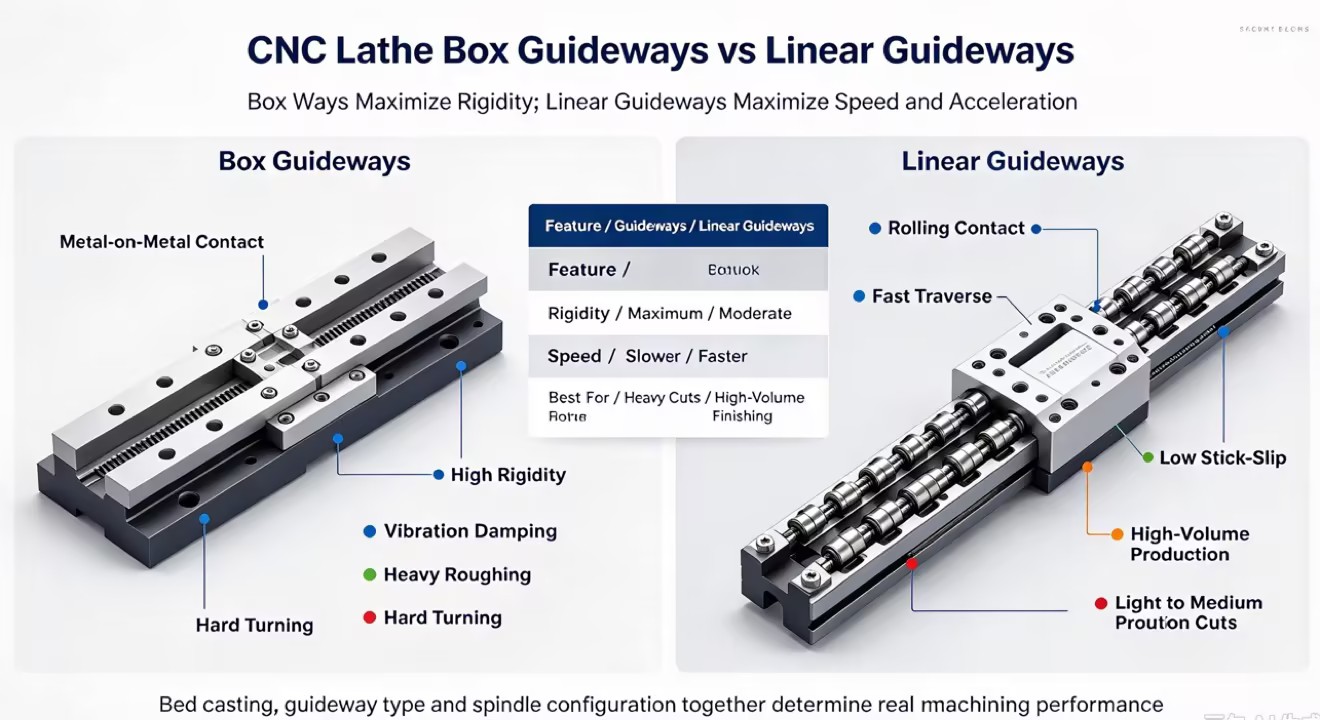

Feature | Linear Guideways | Box Guideways |
|---|---|---|
Friction & Speed | Extremely low friction, enabling high rapid traverse rates (often exceeding 1,000 IPM). | Higher friction due to surface contact, resulting in slower traverse rates. |
Rigidity | Moderate. Excellent for light to medium cuts and high-speed finishing. | Maximum rigidity. Mandatory for heavy interrupted cuts and hard turning. |
Vibration Dampening | Lower dampening capacity, which can lead to chatter on aggressive cuts. | Superior dampening capacity, absorbing heavy cutting forces easily. |
Maintenance | Modular bearing blocks are relatively easy and fast to replace when worn. | Requires manual scraping and complex rebuilding procedures if the ways wear out. |
The CNC control panel allows operators to set tool offsets, run toolpath simulations, and monitor machine status such as spindle load and temperature. Common control systems include FANUC, Siemens, and Haas, and using the same control system across a shop can reduce operator training time and make machine setup easier.
Turning centers execute a wide array of subtractive processes. These operations are generally categorized by whether they remove material from the outside diameter (external) or the inside diameter (internal) of the workpiece.
Turning & Facing: Turning reduces the outer diameter of the workpiece to a specified dimension. Roughing passes remove bulk material quickly, while finishing passes take a light depth of cut to achieve the final tolerance and surface finish. Facing involves moving the tool across the end of the raw stock to create a flat surface and establish the Z-zero reference plane.
Grooving & Threading: Grooving plunges a specialized tool directly into the material to create channels, O-ring seats, or necking profiles. Threading requires absolute synchronization between the Z-axis feed and the spindle encoder to cut precise screw threads along the exterior.
Chamfering & Radiusing: These operations break sharp corners. Chamfering creates a beveled edge, while radiusing creates a rounded profile. Both are critical for part safety, ease of assembly, and aesthetic finishing.
Knurling: Unlike cutting, knurling displaces material. Hardened steel wheels press against the rotating part to create textured, cross-hatched, or straight grip patterns on the exterior surface.
Drilling & Boring: Drilling utilizes stationary drill bits fed along the Z-axis to create centerline holes. Boring uses a single-point cutting tool (a boring bar) to enlarge an existing hole, correct hole straightness, and achieve precise internal diameters that standard drill bits cannot hold. Long boring bars are highly susceptible to vibration, often requiring carbide shanks or tuned mass dampers to prevent chatter.
Reaming: Reaming sizes and finishes pre-drilled holes. Reamers remove a very small amount of material to achieve extremely tight dimensional tolerances and superior internal surface finishes.
Tapping: Tapping cuts internal threads into a pre-drilled hole using a specialized tap, requiring rigid tapping cycles where the spindle precisely reverses direction to back the tool out without stripping the newly cut threads.
Parting is typically the final operation in a turning cycle. A narrow blade feeds along the X-axis toward the centerline to sever the finished part from the remaining bar stock. This operation demands immense machine rigidity. Because the parting blade is thin and extended, any vibration or spindle runout causes tool chatter, which rapidly leads to catastrophic blade breakage and scrapped parts. Operators must carefully manage feeds and speeds as the tool approaches the centerline to prevent the part from breaking off prematurely and leaving a large burr.
Transforming a raw piece of bar stock into a finished aerospace or automotive component requires a strict, sequential workflow encompassing software programming, physical setup, and rigorous safety checks.
The process starts with a 3D CAD model, which is imported into CAM software to create toolpaths and set cutting speeds and feeds. A post-processor converts the CAM data into code for the CNC machine. The correct cutting tools and carbide inserts should be selected based on the material to ensure good cutting and chip control.
G-codes control tool movement and machining operations, such as G00 for rapid movement, G01 for straight cutting, and G71 for rough turning. M-codes control machine functions, such as M03 for spindle rotation, M08 for coolant, and M30 to end the program.
Before machining, operators set the X and Z tool offsets so the CNC control knows the exact tool position. They also set the work coordinate system, such as G54, to define the workpiece zero point and align the physical part with the programmed toolpath.
Before running a program, check the chuck and tailstock clamping, door interlocks, and toolpath simulation. For a new program, use single-block mode and reduce rapid speed to check tool movement and prevent collisions.
Procurement decisions must align machine specifications with actual production demands. Over-specifying a machine wastes capital, while under-specifying creates permanent production bottlenecks.
A standard 2-axis CNC lathe is cost-effective and easy to program, making it suitable for simple parts such as shafts, pins, and flanges. However, parts with off-center holes, milled flats, or features on both ends may need additional machining on another machine. A multi-axis CNC lathe with a sub-spindle, Y-axis, and live tooling can complete these operations in one setup. It can turn the main features, mill flats, transfer the part to the sub-spindle, and machine the back side, reducing manual handling, work-in-progress, and errors caused by multiple setups.
Machine accuracy can change during long production runs because heat from the spindle, ballscrews, and other moving parts can cause the machine to expand. This thermal growth can make part dimensions change over time. For high-precision work, look for CNC lathes with good thermal stability, such as spindle cooling systems, temperature-controlled oil, hollow ballscrews, and thermal compensation software. These features help control heat and maintain consistent accuracy during long machining cycles.
When planning for higher production, check whether the CNC lathe can work with automatic loading and unloading equipment. Bar feeders can continuously load raw bar stock through the spindle, while parts catchers can collect finished parts after cut-off. For large billets or castings that cannot pass through the spindle, the machine should support robotic gantry loaders or robotic arms. Standard automation interfaces can make it easier to add these systems and move toward unattended production.Conclusion
Audit your current part prints to identify features that require secondary milling operations, which could be eliminated by a multi-axis lathe.
Send your most challenging CAD files to equipment manufacturers and request a detailed time-study for cycle time estimates.
Evaluate your shop floor layout to confirm physical space and utility requirements for automated bar feeders or robotic gantry loaders.
Schedule a technical consultation with an application engineer to review spindle torque curves against your specific raw material hardness.
A: The primary difference is the motion of the workpiece versus the tool. In a lathe, the workpiece rotates at high speeds while a stationary cutting tool removes material to create cylindrical parts. In a mill, the workpiece remains stationary on a table while a rotating multi-point cutting tool moves across it to create flat or contoured shapes.
A: Live tooling integrates a dedicated motor within the turret to drive rotating cutting tools like endmills or drills. Combined with a C-axis that precisely indexes and locks the main spindle at specific angles, live tooling allows the machine to perform milling, tapping, and cross-drilling directly on the turned part without moving it to another machine.
A: These machines process a vast range of materials, including soft plastics like Delrin, non-ferrous metals like aluminum and brass, standard carbon steels, and highly abrasive superalloys like titanium and Inconel. The material's hardness dictates the required machine rigidity, spindle torque, and specific carbide insert geometries needed for successful cutting.
A: A well-maintained standard machine can consistently hold tolerances between +/- 0.0005 inches and +/- 0.0001 inches. Achieving and maintaining this accuracy depends heavily on the machine's thermal stability, the quality of the cutting tools, the rigidity of the workholding setup, and the operator's skill in managing tool wear offsets.
A: Daily tasks include loading raw bar stock, measuring finished parts with micrometers, adjusting tool wear offsets in the control panel to maintain tolerances, changing worn carbide inserts, executing pre-flight safety checks, clearing metal chips, and monitoring coolant concentration and lubrication fluid levels.
A: Programming time varies based on part complexity. Simple 2-axis profiles can be programmed conversationally directly at the machine control in 10 to 15 minutes. Complex multi-axis parts requiring synchronized sub-spindle transfers and live tooling may require several hours of offline CAM programming and digital simulation before cutting metal.
