The manufacturing shift toward "done-in-one" machining blurs the lines between traditional turning and complex milling. Equipment selection dictates your shop's baseline efficiency. We often see operators confuse terms like conventional lathe, CNC lathe, and lathes with live tooling. They overlap in casual conversation but differ mechanically from a true turning center. Misaligning machine capabilities with actual production requirements creates massive bottlenecks. You either choke cycle times with multiple setups or waste resources on unused multi-axis features. We will establish a clear technical baseline for both machine types. You need to evaluate specific production variables like part complexity, volume, operator skill, and cycle time. This guide provides a framework for selecting the right turning equipment for your shop floor. Understanding the nuances of CNC turning center vs CNC lathe technology ensures optimal production efficiency.
Axis Complexity: Standard CNC lathes typically operate on 2 axes (X and Z) for symmetrical cylindrical parts, while a CNC turning center incorporates 3 to 6+ axes (including Y and C axes) for complex geometries.
Tooling Capabilities: CNC turning centers utilize live tooling and automatic tool changers (ATC) to perform milling, drilling, and tapping operations in the same cycle, whereas standard lathes rely on stationary cutting tools.
Production Efficiency & Cycle Time: Turning centers drastically reduce secondary operations and handling time, making them ideal for high-mix, complex parts, while 2-axis lathes offer superior efficiency and faster raw turning speeds for high-volume, straightforward parts.
Table of Contents
A standard CNC lathe is mainly used for 2-axis turning. The spindle rotates the workpiece while a stationary cutting tool moves along the X-axis to control diameter and the Z-axis to control length. Common configurations include flat-bed machines, gang-tool setups, and basic turrets, depending on the part and production needs.
Standard CNC lathes are well suited for simple cylindrical parts and operations such as turning, facing, threading, boring, and grooving. They offer good accuracy and rigidity for high-volume production and heavy cutting. However, they cannot perform off-center milling or drilling without additional equipment. Features such as cross-holes, flats, keyways, or back-side machining usually require another machine or a second setup, which adds handling time and may affect accuracy.
Load the material: Clamp the bar stock in the chuck.
Face the part: Machine the front surface and set the Z-zero point.
Rough turn: Remove most of the material from the outside diameter.
Finish turn: Machine the final size and surface finish.
Part off: Cut the finished part from the bar stock.
A CNC turning center combines turning with milling and drilling in one machine. It uses live tooling, Y-axis, and C-axis functions to machine features such as flats, cross-holes, and off-center holes without moving the part to another machine. Slant-bed designs also improve machine rigidity and chip removal.
A sub-spindle can automatically transfer the part from the main spindle and machine the back side. This eliminates manual part flipping and reduces setup time and handling.
Machine the front: Complete turning and milling on the main spindle.
Transfer the part: The sub-spindle moves in and clamps the finished end.
Part off: The parting tool separates the part while both spindles support it.
Machine the back: The sub-spindle moves away and holds the part for back-side machining.
Unload the part: The finished part is transferred to the parts catcher.
CNC turning centers are suitable for complex, high-precision parts used in aerospace, medical, and automotive applications. Their done-in-one capability reduces secondary operations, handling time, and work-in-progress.

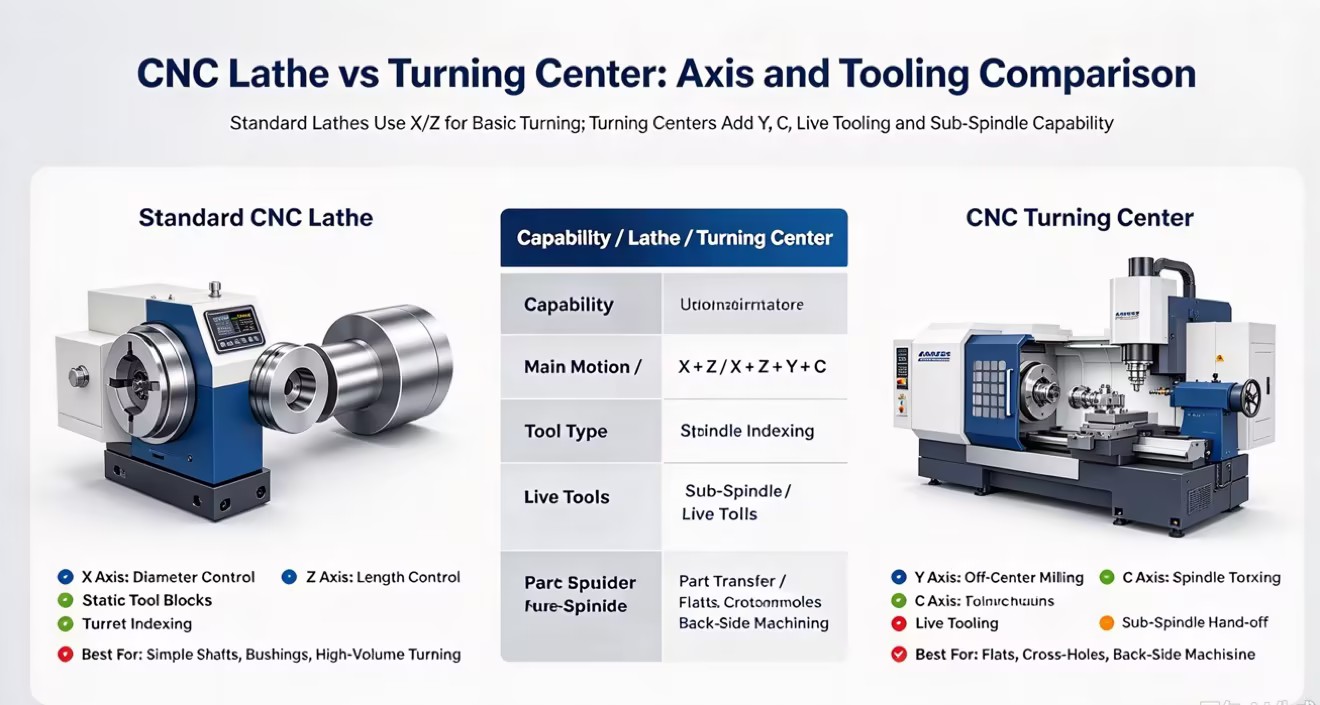

A standard CNC lathe mainly uses X and Z axes for basic turning. A CNC turning center can use Y and C axes for off-center milling, drilling, flats, and keyways. Some advanced machines also use a B-axis for angled and multi-axis machining.
Standard lathes use static tools, while turning centers use live tooling for milling, drilling, and tapping. BMT holders provide higher rigidity, while VDI holders allow faster tool changes. Turning centers can also support automatic tool changers and backup tools for longer unattended production.

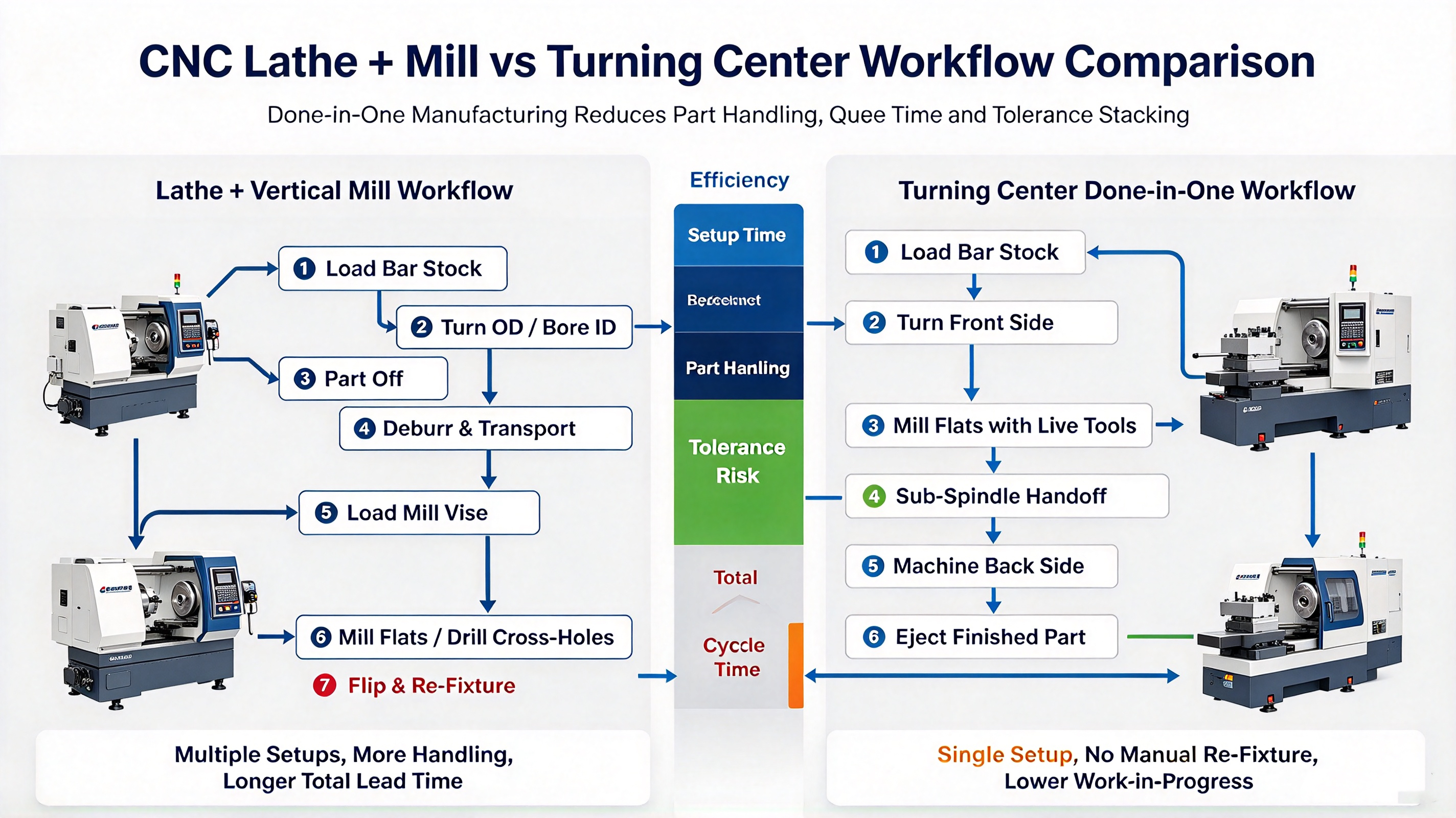

A turning center can complete turning, milling, and other operations in one setup, reducing part handling and setup time. A standard lathe may require a separate milling machine for additional features, which adds transfer time and can create production bottlenecks.
Production Phase | Lathe + Vertical Mill Workflow | Turning Center Workflow |
|---|---|---|
Setup 1 (Turning) | Load bar stock, turn OD, bore ID, part off. | Load bar stock, turn OD, bore ID. |
Part Handling | Remove part, deburr, transport to milling department. | Zero manual handling. Part remains in machine. |
Setup 2 (Milling) | Load into vise, indicate part, set work offsets. | Live tools engage immediately. |
Machining (Milling) | Mill flats, drill cross-holes. | Mill flats, drill cross-holes via Y and C axes. |
Setup 3 (Back-work) | Flip part in vise, re-indicate, face back side. | Sub-spindle grabs part, faces back side automatically. |
Flat-bed structures suit basic turning operations. Slant-bed cast iron structures dominate turning centers. Slant angles typically range from 30 to 60 degrees. Higher mass ensures exceptional thermal stability. This mass dampens vibrations effectively. It handles the interrupted cuts associated with live-tool milling. Linear guideways provide rapid traverse speeds, often exceeding 1,200 inches per minute. Heavy-duty box ways offer superior rigidity for cutting tough aerospace alloys like Inconel or Titanium, absorbing the harmonic chatter that destroys carbide inserts.
High-pressure coolant systems are mandatory for turning centers. Pressures often exceed 1000 PSI. This breaks stringy chips when drilling deep holes with live tools. Turning centers generate higher material removal rates. They perform turning, milling, and drilling in one enclosed space. Multi-axis cutting zones require advanced chip conveyors. Hinge-belt conveyors handle stringy steel chips. Magnetic conveyors pull fine cast iron dust. Scraper conveyors drag aluminum chips out of the sump. Standard lathes often survive with basic flood coolant and manual chip cleanout. Turning centers demand automated chip management to prevent jams during unattended operation.

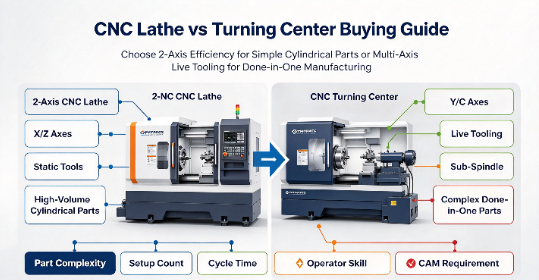

Analyze the "Done-in-One" philosophy carefully. Eliminating secondary operations is the primary goal of upgrading equipment. Count the setups required for your average part. If a part needs three setups across different machines, a turning center wins easily. Compare total setup time against single-machine cycle time. A part might take 4 minutes to turn and 6 minutes to mill on separate machines. Moving it takes 15 minutes of handling and queue time. A turning center might take 12 minutes total. You save 13 minutes per part. Setup reduction improves Overall Equipment Effectiveness (OEE) drastically. It also eliminates tolerance stacking errors caused by re-fixturing. Every time you unclamp and reclamp a part, you lose concentricity.
Standard lathes excel at high-volume, low-complexity runs. Fasteners, simple shafts, and basic bushings fit perfectly. If you run millions of identical cylindrical parts, a 2-axis lathe maximizes efficiency. Turning centers handle high-mix, low-to-medium volume runs better. Job shops face constantly changing part geometries. Quick changeovers and complex feature generation justify the advanced equipment. You can switch from making a hydraulic manifold to an aerospace bracket in hours. Flexibility becomes your competitive advantage.
Measure your shop floor carefully. Turning centers demand a significantly larger footprint. The machine itself is wider and deeper to accommodate the extra axes and sub-spindle. You must add space for 12-foot hydrodynamic bar feeders. You must allocate room for high-pressure coolant tanks and paper media filters. Advanced chip conveyors extend out the side or back. Mist collectors add height requirements. Compact 2-axis lathes fit tighter spaces easily. You can often place two standard lathes in the footprint of one fully equipped turning center. Facility power requirements also jump. Multi-axis machines draw more amperage to run live tools, high-pressure pumps, and sub-spindles simultaneously. You may need to drop new electrical lines to support the load.
Programming complexity jumps significantly with multi-axis machines. You can program 2-axis lathes conversationally directly at the control panel. Operators can write G-code by hand for simple profiles using standard canned cycles like G71 or G72. Turning centers require advanced CAM software. You need robust post-processors to translate the CAM data into flawless G-code. Highly skilled machinists are required to prevent collisions. Operators must understand milling feeds and speeds, chip loads, and climb milling techniques, not just turning parameters. The transition requires a shift from machine operators to manufacturing engineers.
A multi-axis turning center may be unnecessary for shops that mainly produce simple parts. Review recent part drawings and check how often you need live tooling, cross-holes, or milling. Choose machine capabilities based on actual production needs to avoid unnecessary cost and maintenance.
Multi-axis turning centers need reliable CAM software and verified post-processors to generate accurate programs. Before installation, confirm the post-processor with the CAM supplier and provide proper training so programmers and operators can safely handle multi-axis machining.
More axes and live tooling increase the risk of collisions and maintenance needs. Use simulation to check toolpaths before machining and follow regular maintenance schedules for the turret, bearings, alignment, and coolant system.
Gather 5 of your most complex part prints and calculate the current total setup and handling time across multiple machines.
Request physical test cuts and detailed time studies from machine tool builders for both machine types to verify actual cycle times.
Audit your shop floor footprint, measuring available space for bar feeders, chip conveyors, and high-pressure coolant systems.
Evaluate your current CAM software capabilities and secure verified post-processors before finalizing any equipment selection.
A: Not exactly. While terms are often used interchangeably, a basic lathe with live tooling might only have an indexing C-axis. A true CNC turning center usually implies a heavier-duty machine built specifically for milling. It often includes a Y-axis, sub-spindle, and higher-torque live tool drive motors.
A: A Swiss machine uses a guide bushing to support the material right next to the cutting tool. This makes it ideal for extremely long, slender parts. A turning center holds the part in a chuck without a guide bushing. Turning centers handle much larger diameters and heavier cuts than Swiss machines.
A: No. A standard 2-axis CNC lathe lacks driven tools and the necessary axes (like C or Y) to perform milling. It can only rotate the workpiece against a stationary cutting tool. Any milling, drilling, or tapping off-center requires moving the part to a separate milling machine.
A: Live tooling refers to cutting tools that are actively driven by a motor inside the turret. Instead of remaining static, these tools (like endmills or drills) spin at high RPMs. This allows the machine to cut features into the workpiece while the main spindle is held stationary or rotated slowly.
A: No. A slant-bed design refers only to the physical architecture of the machine casting. Many standard 2-axis lathes use slant beds for better rigidity and chip evacuation. It only becomes a turning center when live tooling and multi-axis capabilities are integrated into that slant-bed frame.
A: Yes. While 2-axis lathes can often be programmed manually or conversationally, turning centers require robust CAM software. Programming simultaneous Y-axis milling, C-axis interpolation, and sub-spindle part transfers by hand is highly inefficient and prone to catastrophic collision errors. Verified post-processors are mandatory.
