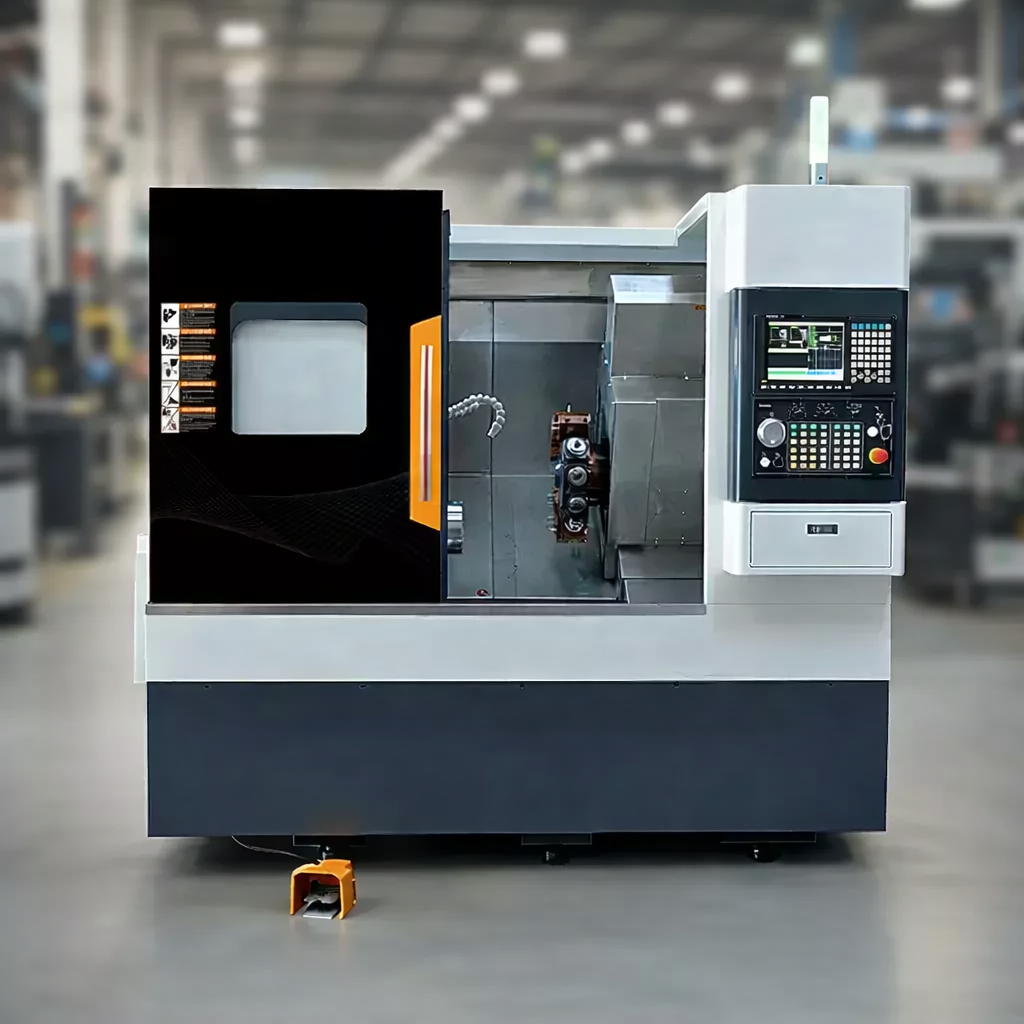

Have you ever wondered how intricate parts are made with precision? Machine milling is a key process in manufacturing that shapes materials effectively. In this article, you'll learn what machine milling is and why it plays a crucial role in producing high-quality components across various industries.
Machine milling is a subtractive manufacturing process that removes material from a workpiece using a rotating cutting tool known as a milling cutter. This process is integral to producing precise shapes and features in various materials, including metals, plastics, and composites. The milling cutter rotates at high speeds, while the workpiece is fed into the cutter, allowing for efficient material removal and the creation of intricate designs.
Milling can be classified into two primary types: face milling and peripheral milling. In face milling, the cutter is mounted perpendicular to the workpiece, primarily removing material from the flat surfaces. This method is ideal for creating smooth, flat areas. Conversely, in peripheral milling, the cutter runs parallel to the workpiece, cutting along the sides and allowing for the creation of grooves or slots.
The milling process consists of several key stages, each crucial for achieving the desired outcome:
Preparation and Planning: This initial stage involves designing the part using Computer-Aided Design (CAD) software. Specifications like dimensions, tolerances, material type, and surface finishes are determined, along with the selection of appropriate tools.
Setting Up the Machine: The workpiece is securely clamped onto the milling machine's table, and the milling cutter is attached to the spindle. Parameters such as spindle speed, feed rate, and depth of cut are set according to the material and operation requirements.
Cutter Movement: The milling cutter begins to rotate at high speed, powered by the spindle. The workpiece is moved in relation to the cutter, either through manual control or automated CNC (Computer Numerical Control) programming. This movement is essential for the cutting action.
Material Removal: As the cutter interacts with the workpiece, it removes small pieces of material, referred to as chips or swarf. The cutter's design, speed, and feed rate significantly influence the amount of material removed and the final shape of the workpiece. Multiple passes may be required to achieve the desired dimensions.
Cooling and Lubrication: Milling generates heat due to friction, which can affect both the tool and the workpiece. Coolant fluids are often applied to cool the cutting area, lubricate the tool, and wash away chips, thus prolonging tool life and ensuring a smooth finish.
Completion: Once the desired shape, size, and surface finish are achieved, the milling operation is concluded. The workpiece is removed from the machine for inspection and any necessary further processing.
Understanding these stages helps in optimizing the milling process, ensuring high-quality outcomes in manufacturing.
Machine milling operations are essential in shaping materials for various applications. Each type of milling operation has its unique characteristics and is suited for specific tasks. Understanding these types can help manufacturers select the right method for their needs.
Face milling is a process where the cutting tool's axis is perpendicular to the workpiece surface. This operation primarily removes material from the flat surfaces of the workpiece. It creates a smooth finish and is commonly used for squaring stock or establishing flat surfaces. Face milling can produce various features, including pockets, contours, and angled surfaces.
Peripheral milling, also known as slab milling, involves the cutting tool's axis running parallel to the workpiece. This method is ideal for producing deep slots, grooves, and vertical walls. The tool removes material from the sides of the workpiece, making it suitable for contouring and profiling. The process requires careful control of deflection and cutting forces to achieve accurate results.
End milling is characterized by cutting edges on both the end and the sides of the tool. This versatility makes it suitable for creating slots, pockets, and complex contours. It allows for both vertical and horizontal cutting, making it a popular choice for various milling tasks. End mills can be center-cutting, enabling them to plunge directly into the material, which is beneficial for creating deep cavities.
Angular milling involves setting the cutting tool at an angle relative to the workpiece surface. This operation is used to create angular features or surfaces, such as chamfers or grooves. Angular milling requires precise tool positioning and control to ensure accurate cuts. It is often employed in applications where specific angles are critical to the part's function.
Profile milling focuses on cutting the outer contour of a part. It can be used for both inside and outside profiles, enabling manufacturers to create intricate shapes and designs. This operation is particularly useful in industries requiring high precision, such as aerospace and automotive. Profile milling allows for complex geometries while maintaining tight tolerances.
Each type of machine milling operation serves a specific purpose and can be combined for more complex tasks. By understanding these operations, manufacturers can optimize their processes and improve efficiency.
Milling machines come in various types, each designed for specific applications and tasks. They differ in structure, capabilities, and the types of milling operations they can perform. Understanding these types is crucial for selecting the right machine for your manufacturing needs.
Vertical milling machines have a spindle axis oriented vertically. This design allows the cutting tool to move up and down, while the workpiece is mounted on a movable table. Vertical mills are versatile and commonly used for various tasks, such as drilling, boring, and face milling. The accessibility of the spindle makes it easy to perform intricate operations. They are particularly effective for small to medium-sized parts and can accommodate a range of materials.
Horizontal milling machines feature a horizontal spindle, with the cutting tool mounted on an arbor extending from the side of the machine. The workpiece is also mounted on a movable table, allowing for multiple directions of movement. This type of machine is suitable for heavy-duty operations such as slab milling, face milling, and forming slots or grooves. The horizontal orientation helps in efficient chip removal, making it ideal for larger components and materials that produce longer chips.
Computer Numerical Control (CNC) milling machines automate the milling process using computer programming. They operate along multiple axes (typically 3, 4, or 5), allowing for precise and complex milling tasks. CNC machines are widely used in industries requiring high precision, such as aerospace, automotive, and electronics. They enable rapid production and consistent quality, reducing the need for manual intervention. The ability to program intricate designs makes CNC milling machines invaluable for modern manufacturing.
Universal milling machines can perform both vertical and horizontal milling operations. They are equipped with a table that can rotate along the horizontal axis, allowing for angular cuts. This versatility makes them suitable for complex and multi-angle milling tasks, such as helical milling or gear cutting. Universal milling machines are ideal for workshops that require flexibility in their milling capabilities, enabling manufacturers to handle various projects without needing multiple machines.
In machine milling, various types of equipment and tools are essential for achieving precise and effective material removal. Understanding the equipment used can help manufacturers optimize their milling operations for better efficiency and quality.
The primary machine tool used for milling operations is the milling machine. It is equipped with a spindle that holds and rotates the cutting tool. Milling machines come in different types, including:
Vertical Milling Machines: These have a spindle axis oriented vertically. The cutting tool moves up and down while the workpiece is mounted on a movable table. They are versatile and suitable for various tasks, such as drilling, boring, and face milling.
Horizontal Milling Machines: These feature a horizontal spindle, with the cutting tool mounted on an arbor extending from the machine's side. The workpiece is also mounted on a movable table, allowing for multiple directions of movement. They are ideal for heavy-duty operations like slab milling and forming slots or grooves.
CNC Milling Machines: Computer Numerical Control (CNC) machines automate the milling process using computer programming. They operate along multiple axes, allowing for precise and complex milling tasks. CNC machines are widely used in industries that require high precision, such as aerospace and automotive.
Universal Milling Machines: These can perform both vertical and horizontal milling operations. They are equipped with a table that can rotate along the horizontal axis, allowing for angular cuts. This versatility makes them suitable for complex and multi-angle milling tasks.
A milling cutter is a tool used in milling machines to remove material from the workpiece. Milling cutters come in various shapes, sizes, and types, each designed for specific cutting operations. Some common types of milling cutters include:
End Mills: These have cutting edges on both the end and the sides of the tool, making them suitable for creating slots, pockets, and complex contours.
Face Mills: These are used for face milling operations, where the cutter removes material from the flat surfaces of the workpiece.
Slab Mills: Designed for peripheral milling, slab mills are used to cut deep slots and grooves.
Ball Nose Cutters: These are used for 3D contouring and creating complex shapes.
The choice of cutter depends on the specific requirements of the milling operation, such as the material being machined and the desired finish.
Cutting fluids play a crucial role in milling operations. They help reduce friction, dissipate heat, and extend tool life. There are two main types of cutting fluids:
Coolants: These fluids cool and lubricate the cutting tool and workpiece during milling. They help manage heat and improve surface finish.
Lubricants: These fluids reduce friction and wear on the cutting tool and workpiece, enhancing cutting efficiency.
Proper selection and application of cutting fluids are essential for optimizing milling performance and ensuring high-quality results.
Machine milling is a versatile process that can effectively shape a wide range of materials, each with unique properties and machining characteristics. Understanding the materials suitable for milling is crucial for achieving optimal results in manufacturing. Below are the primary categories of materials commonly milled, along with their specific considerations.
Metals are among the most commonly milled materials due to their strength and durability. Different metals exhibit unique machining behaviors:
Aluminum: Lightweight and highly machinable, aluminum allows for good chip formation and low cutting forces. It dissipates heat effectively, minimizing the risk of overheating during milling. Its corrosion resistance makes it a popular choice in various applications.
Steel: Known for its toughness and strength, steel can be challenging to mill due to its hardness. However, it is widely used in manufacturing due to its versatility and range of alloys, each offering different machining properties.
Stainless Steel: This corrosion-resistant material is tough and often work hardens, making it more difficult to machine. It requires careful selection of cutting parameters and tooling to achieve a good finish.
Titanium: Strong yet lightweight, titanium is resistant to heat and corrosion. However, it poses challenges during milling due to its toughness, requiring specialized tooling and techniques to manage heat and maintain tool life.
Brass: This copper-zinc alloy is easy to machine, offering good corrosion resistance and a bright finish. Brass is often used in applications where aesthetics and machinability are important.
Milling plastics is common in industries like consumer products and electronics. Each type of plastic has distinct properties:
Acrylic (PMMA): Known for its clarity and impact resistance, acrylic can be milled to create precise shapes and designs. It requires sharp tools to avoid chipping.
Polycarbonate (PC): This tough plastic is used in applications requiring high impact resistance. It can be milled effectively, but care must be taken to manage heat generation.
Nylon (Polyamide): Nylon is strong and flexible, making it suitable for various applications. It can produce long chips, so proper chip management is essential during milling.
Polyethylene (PE): This lightweight plastic is easy to machine but can deform under cutting forces. It requires specific feed rates and tool geometries for optimal results.
Composites are engineered materials made from two or more constituents. They are increasingly used in industries where lightweight and high strength are crucial:
Carbon Fiber Reinforced Polymer (CFRP): CFRP is lightweight and strong but can be abrasive to cutting tools. Specialized tooling is often required for effective milling.
Glass Fiber Reinforced Polymer (GFRP): Similar to CFRP, GFRP is used widely in automotive and aerospace applications. It requires careful handling to prevent fiber fraying during machining.
Milling wood is prevalent in woodworking and manufacturing industries. Different wood types require different approaches:
Softwoods (e.g., pine, cedar): Generally easier to mill, softwoods can splinter if not handled correctly. They are often used for furniture and construction.
Hardwoods (e.g., oak, maple): More challenging to mill due to their density, hardwoods provide durability and aesthetic appeal. They require sharper tools and slower feed rates.
Exotic Woods (e.g., mahogany, teak): These woods can be more difficult to mill due to their unique grain patterns and densities. They often require specialized techniques.
Milling ceramics requires specialized tools due to their hardness and brittleness. Common ceramics include:
Alumina: Often used in industrial applications, alumina is hard and wear-resistant. It requires diamond-coated tools for effective milling.
Silicon Carbide: Known for its hardness, silicon carbide is used in high-performance applications. It also requires specialized tooling due to its abrasive nature.
Machine milling, while a highly efficient manufacturing process, involves several hazards that operators must be aware of to ensure safety. Understanding these hazards is crucial in preventing accidents and ensuring a safe working environment.
Mechanical Hazards: Milling machines have various moving parts, including spindles, tables, and cutting tools. These components can pose risks of entanglement or crushing. Operators must be cautious around these moving parts to avoid injuries.
Electrical Hazards: Milling machines rely on electrical systems for operation. Faulty wiring or malfunctioning equipment can lead to electric shock. Regular maintenance and inspections are essential to mitigate these risks.
Noise Hazards: The operation of milling machines generates significant noise levels, which can lead to hearing loss over time. Operators should use hearing protection to minimize this risk.
Ergonomic Hazards: Prolonged periods of standing or awkward postures can lead to musculoskeletal disorders. Operators should be trained in proper ergonomics and take breaks to reduce strain.
Chip and Coolant Hazards: The milling process generates chips and coolant, which can create slip hazards. Keeping the work area clean and dry is vital to prevent accidents.
To ensure safety in machine milling operations, several best practices should be implemented:
Training and Awareness: Operators should receive comprehensive training on machine operation, safety protocols, and emergency procedures. Regular refresher courses can help maintain awareness of safety practices.
Personal Protective Equipment (PPE): Operators must wear appropriate PPE, including safety glasses, face shields, gloves, and ear protection. This equipment helps protect against flying debris, noise, and other hazards.
Machine Guards: Installing guards on milling machines can prevent accidental contact with moving parts. Ensure that all guards are in place and functioning before operating the machine.
Lockout/Tagout Procedures: Before performing maintenance or repairs, implement lockout/tagout procedures to ensure that machines cannot be accidentally started. This practice protects workers from unexpected machine movements.
Regular Maintenance: Conduct routine inspections and maintenance on milling machines to ensure they are in safe working condition. Address any issues immediately to prevent accidents.
Clear Work Area: Keep the milling area clean and organized. Remove any debris, chips, or coolant spills promptly to minimize slip and trip hazards.
Emergency Procedures: Establish clear emergency procedures and ensure all operators are familiar with them. This includes knowing the location of emergency stops, fire extinguishers, and first aid kits.
By adhering to these safety measures, manufacturers can create a safer work environment for their employees, reducing the risk of accidents and injuries during milling operations.
Machine milling is a vital subtractive manufacturing process that shapes various materials using rotating cutting tools. It includes types like face, peripheral, and end milling, each suited for specific tasks. Milling machines vary from vertical to CNC models, enhancing precision and versatility. While milling offers many advantages, such as high accuracy and the ability to create complex geometries, it also has limitations, including challenges with deep cavities and heat management. Taiz provides advanced milling solutions, ensuring optimal performance and high-quality results for diverse manufacturing needs.
A: Machine milling is a subtractive manufacturing process that removes material from a workpiece using a rotating cutting tool known as a milling cutter.
A: Machine milling works by rotating a cutting tool at high speeds while the workpiece is fed into the cutter, allowing for efficient material removal and precise shaping.
A: Machine milling is important as it enables the production of intricate designs and precise shapes in various materials, essential for many industries.
A: The benefits of machine milling include versatility, high precision, and the ability to create complex geometries, making it suitable for diverse applications.
A: Suitable materials for machine milling include metals, plastics, composites, and wood, each with unique properties that affect the milling process.
